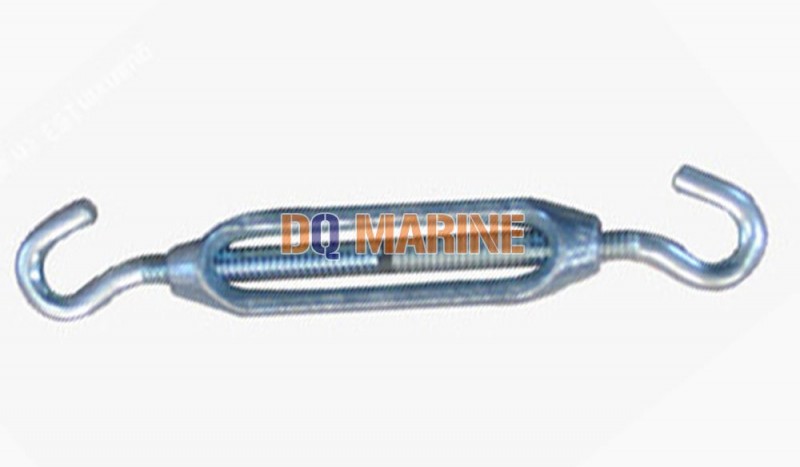

US Type Turnbuckles with Hook and Hook
Introduction
US Type Turnbuckles with Hook and Hook adopts American standard, the material is 45 steel, it is built by forging process, the surface is hot galvanizing treatment, mainly used for the often disassembling occasion.
Product Details
US Type Turnbuckles with Hook and Hook sizes table
| Size(in) | Working Load Limit (lbs) | Weight (lbs) | Dimensions(in) | ||||||||
| A | E Closed | J Open | K Closed | M Open | N Closed | D | F | BB | |||
| 1/4*4 | 400 | 0.3 | 0.25 | 1.59 | 11.12 | 7.12 | 11.94 | 7.94 | 0.45 | 1.27 | 4 |
| 5/16*4 1/2 | 700 | 0.47 | 0.31 | 1.94 | 12.81 | 8.31 | 13.81 | 9.31 | 0.5 | 1.5 | 4.5 |
| 3/8*6 | 1000 | 0.78 | 0.38 | 2.3 | 16.5 | 10.5 | 17.72 | 11.72 | 0.56 | 1.77 | 6 |
| 1/2*6 | 1500 | 1.6 | 0.5 | 2.94 | 18.82 | 11.82 | 20.38 | 13.38 | 0.66 | 2.28 | 6 |
| 1/2*12 | 1500 | 2.28 | 0.5 | 2.94 | 30.82 | 17.82 | 32.38 | 19.38 | 0.66 | 2.28 | 12 |
| 5/8*6 | 2250 | 2.75 | 0.63 | 3.69 | 20.5 | 13.25 | 22.5 | 15.25 | 0.9 | 2.81 | 6 |
| 5/8*12 | 2250 | 3.5 | 0.63 | 3.69 | 32.5 | 19.25 | 34.5 | 21.25 | 0.9 | 2.81 | 12 |
| 3/4*6 | 3000 | 3.89 | 0.75 | 4.52 | 22.38 | 14.88 | 24.78 | 17.28 | 0.98 | 3.33 | 6 |
| 3/4*12 | 3000 | 5.43 | 0.75 | 4.52 | 34.38 | 20.88 | 36.78 | 23.28 | 0.98 | 3.33 | 12 |
| 3/4*18 | 3000 | 8.12 | 0.75 | 4.52 | 46.38 | 26.88 | 48.78 | 29.28 | 0.98 | 3.33 | 18 |
| 7/8*12 | 4000 | 8.1 | 0.88 | 5.19 | 36 | 22.25 | 38.75 | 25 | 1.13 | 3.78 | 12 |
| 1*12 | 5000 | 11.93 | 1 | 5.84 | 37.63 | 23.63 | 40.69 | 26.69 | 1.25 | 4.25 | 12 |
| 1*18 | 5000 | 14 | 1 | 5.84 | 49.63 | 29.63 | 52.69 | 32.69 | 1.25 | 4.25 | 18 |
| 1*24 | 5000 | 17.25 | 1 | 5.84 | 61.63 | 35.63 | 64.69 | 38.69 | 1.25 | 4.25 | 24 |
| 1 1/4*12 | 6500 | 20.58 | 1.25 | 7.22 | 40.44 | 25.94 | 44.06 | 29.56 | 1.5 | 5.13 | 12 |
| 1 1/4*18 | 6500 | 23 | 1.25 | 7.22 | 52.44 | 31.94 | 56.06 | 35.56 | 1.5 | 5.13 | 18 |
| 1 1/4*24 | 6500 | 27 | 1.25 | 7.22 | 64.44 | 37.94 | 68.06 | 41.56 | 1.5 | 5.13 | 24 |
| 1 1/2*12 | 7500 | 27.5 | 1.5 | 8.34 | 43.94 | 28.94 | 47.44 | 32.44 | 1.88 | 5.75 | 12 |
| 1 1/2*18 | 7500 | 31 | 1.5 | 8.34 | 55.96 | 34.94 | 59.44 | 38.44 | 1.88 | 5.75 | 18 |
| 1 1/2*24 | 7500 | 37.5 | 1.5 | 8.34 | 67.94 | 40.94 | 71.44 | 44.44 | 1.88 | 5.75 | 24 |
