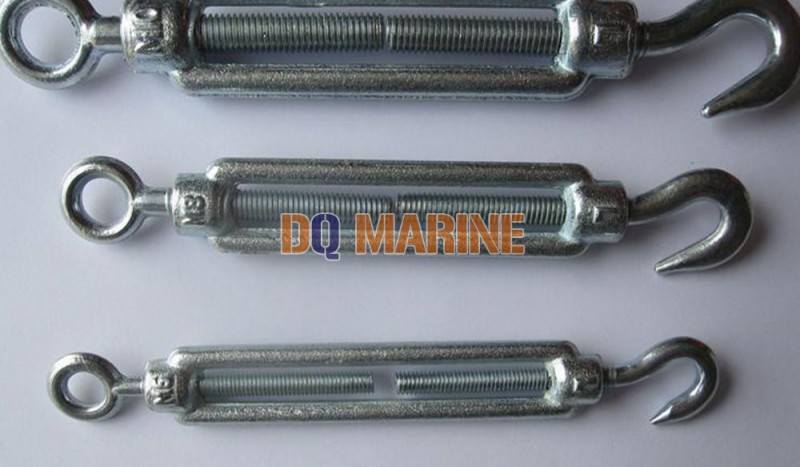

DIN 1480 Turnbuckles
Description
DIN 1480 Turnbuckles adopt German standard, the material is Q235 steel. This product is built by die forging process, the surface can be electro galvanized.
Product Details
DIN 1480 Turnbucklessizes table
| Size (mm) | Dimensions(mm) | Weight 100 pcs (Ibs) | ||||||
| L1 | L2 | L3 | b1 | L4 | d1 | L5 | ||
| M6 | 110 | 80 | 85 | 8.5 | 80 | 9 | 172 | 21 |
| M8 | 110 | 75 | 85 | 11 | 84 | 10 | 182 | 36.4 |
| M10 | 125 | 85 | 112 | 13.5 | 105 | 14 | 213 | 64 |
| M12 | 125 | 80 | 117 | 15.5 | 115 | 16 | 238 | 94.9 |
| M14 | 140 | 90 | 122 | 18.5 | 122 | 18 | 263 | 136.8 |
| M16 | 170 | 110 | 138 | 19 | 165 | 22 | 320 | 203 |
| M20 | 200 | 130 | 170 | 20.5 | 167 | 24 | 367 | 359.7 |
| M22 | 220 | 145 | 185 | 26 | 167 | 27 | 398 | 485.4 |
| M24 | 255 | 170 | 205 | 26 | 205 | 27 | 447 | 662 |
| M30 | 255 | 160 | 225 | 33 | 255 | 31 | 512 | 1015 |
| M36 | 295 | 180 | 255 | 44 | 276 | 43 | 568 | 1694.6 |
| M42 | 330 | 200 | 340 | 48 | 260 | 49 | 683 | 2846.4 |
| M48 | 355 | 195 | 360 | 58 | 300 | 58 | 755 | 4633.7 |
