US Type Turnbuckles with Eye and Hook
Introduction

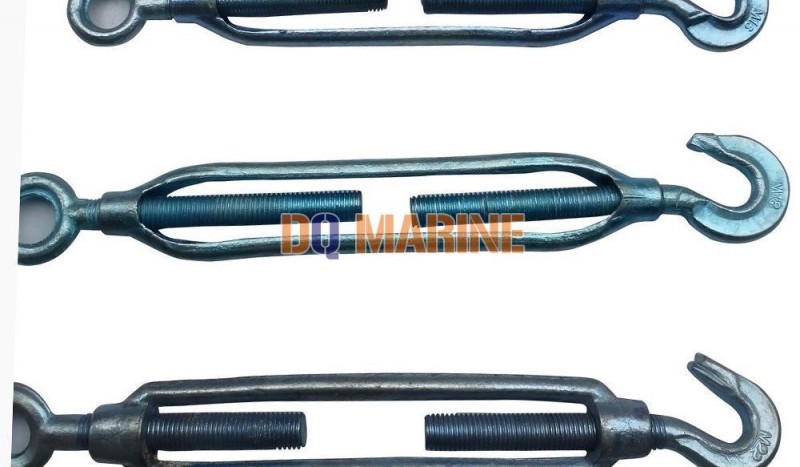

US Type Turnbuckles with Eye and Hook adopts American standard, the material is 45 steel, it is built by forging process, the surface is hot galvanizing treatment, mainly used for the not often disassembling occasion of one side.
Product Information
US Type Turnbuckles with Eye and Hook sizes table
| Size (in) | WLL (Ibs) | Weight (Ibs) | Dimensions (in) | |||||||||||
| A | D | E Closed | F | J Open | K Closed | M Open | N Closed | R | S | X Closed | BB | |||
| 1/4 x 4 | 400 | 0.3 | 0.25 | 0.45 | 1.59 | 1.27 | 11.46 | 7.46 | 12.09 | 8.09 | 0.78 | 0.34 | 1.75 | 4 |
| 5/16 x 4 1/2 | 700 | 0.47 | 0.31 | 0.5 | 1.94 | 1.5 | 13.19 | 8.69 | 13.47 | 9.47 | 0.94 | 0.44 | 2.09 | 4.5 |
| 3/8 x 6 | 1000 | 0.75 | 0.38 | 0.56 | 2.3 | 1.77 | 16.5 | 10.98 | 17.97 | 11.94 | 1.12 | 0.53 | 2.52 | 6 |
| 1/2 x 6 | 1500 | 1.6 | 0.5 | 0.66 | 2.94 | 2.28 | 18.45 | 12.45 | 19.67 | 13.16 | 1.44 | 0.72 | 3.23 | 6 |
| 1/2 x 9 | 1500 | 1.83 | 0.5 | 0.66 | 2.94 | 2.28 | 24.45 | 15.45 | 25.67 | 16.67 | 1.44 | 0.72 | 3.23 | 9 |
| 1/2 x 12 | 1500 | 2.08 | 0.5 | 0.66 | 2.94 | 2.28 | 30.45 | 18.45 | 31.67 | 19.67 | 1.44 | 0.72 | 3.23 | 12 |
| 5/8 x 6 | 2250 | 2.75 | 0.63 | 0.84 | 3.69 | 2.81 | 19.96 | 13.96 | 21.47 | 15.47 | 1.75 | 0.88 | 3.9 | 6 |
| 5/8 x 9 | 2250 | 3.13 | 0.63 | 0.84 | 3.69 | 2.81 | 25.96 | 16.96 | 27.47 | 18.47 | 1.75 | 0.88 | 3.9 | 9 |
| 5/8 x 12 | 2250 | 3.5 | 0.63 | 0.84 | 3.69 | 2.81 | 31.96 | 19.96 | 33.47 | 21.47 | 1.75 | 0.88 | 3.9 | 12 |
| 3/4 x 6 | 3000 | 3.89 | 0.75 | 0.98 | 4.52 | 3.33 | 21.63 | 25.96 | 23.45 | 17.45 | 2.09 | 1 | 4.69 | 6 |
| 3/4 x 9 | 3000 | 4.61 | 0.75 | 0.98 | 4.52 | 3.33 | 27.63 | 31.96 | 29.45 | 20.45 | 2.09 | 1 | 4.69 | 9 |
| 3/4 x 12 | 3000 | 5.43 | 0.75 | 0.98 | 4.52 | 3.33 | 33.63 | 21.63 | 35.45 | 23.45 | 2.09 | 1 | 4.69 | 12 |
| 3/4 x 18 | 3000 | 7.25 | 0.75 | 0.98 | 4.52 | 3.33 | 45.63 | 27.63 | 47.45 | 29.45 | 2.09 | 1 | 4.69 | 18 |
| 7/8 x 12 | 4000 | 8.1 | 0.88 | 1.13 | 5.19 | 3.78 | 34.78 | 22.78 | 36.91 | 24.91 | 2.38 | 1.25 | 5.1 | 12 |
| 7/8 x 18 | 4000 | 9.95 | 0.88 | 1.13 | 5.19 | 3.78 | 46.78 | 28.78 | 48.91 | 30.91 | 2.38 | 1.25 | 5.1 | 18 |
| 1x 6 | 5000 | 9.33 | 1 | 1.25 | 5.84 | 4.25 | 24.8 | 18.8 | 27.2 | 21.2 | 3 | 1.44 | 6.36 | 6 |
| 1 x 12 | 5000 | 11.93 | 1 | 1.25 | 5.84 | 4.25 | 36.8 | 24.8 | 39.2 | 27.2 | 3 | 1.44 | 6.36 | 12 |
| 1 x 18 | 5000 | 14 | 1 | 1.25 | 5.84 | 4.25 | 48.8 | 30.8 | 51.2 | 33.2 | 3 | 1.44 | 6.36 | 18 |
| 1 x 24 | 5000 | 17.25 | 1 | 1.25 | 5.84 | 4.25 | 60.8 | 36.8 | 63.2 | 0.2 | 3 | 1.44 | 6.36 | 24 |
| 1 1/4 x 12 | 5000 | 19 | 1.25 | 1.5 | 7.22 | 5.13 | 39.13 | 27.13 | 42.06 | 30.06 | 3.56 | 1.81 | 7.72 | 12 |
| 1 1/4 x 18 | 5000 | 23 | 1.25 | 1.5 | 7.22 | 5.13 | 51.13 | 33.13 | 54.06 | 36.07 | 3.56 | 1.81 | 7.72 | 18 |
| 1 1/4 x 24 | 5000 | 27 | 1.25 | 1.5 | 7.22 | 5.13 | 63.13 | 39.13 | 66.06 | 42.06 | 3.56 | 1.81 | 7.72 | 24 |
| 1 1/2 x 12 | 7500 | 27.5 | 1.5 | 1.88 | 8.34 | 5.75 | 41.72 | 29.72 | 44.72 | 32.72 | 4.06 | 2.12 | 8.62 | 12 |
| 1 1/2 x 18 | 7500 | 31 | 1.5 | 1.88 | 8.34 | 5.75 | 53.72 | 35.72 | 56.72 | 38.72 | 4.06 | 2.12 | 8.62 | 18 |
| 1 1/2 x 24 | 7500 | 37.5 | 1.5 | 1.88 | 8.34 | 5.75 | 65.72 | 41.72 | 68.72 | 44.72 | 4.06 | 2.12 | 8.62 | 24 |
