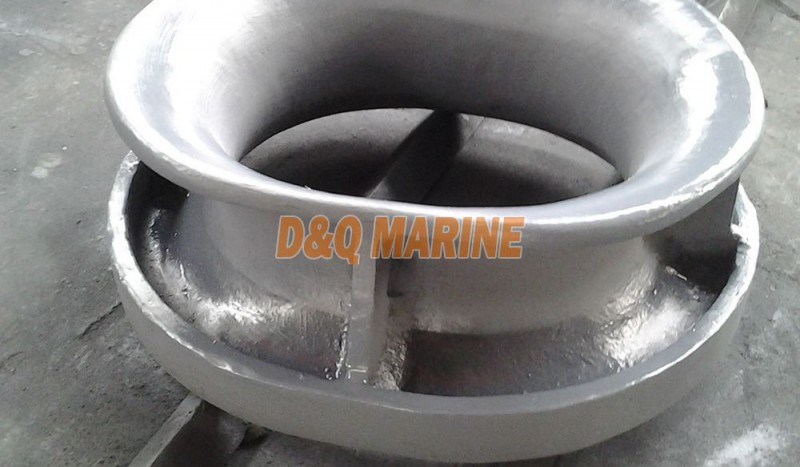

JISF2007 Bulwark Type Mooring Chock
JISF2007 Bulwark Type Mooring Chock
Description:
Material is cast steel,ZG230-450 or ZG200-400,its paint mainly adopt grey epoxy primer or black butumen paint.Iron shelf packaging.
Drawing:
Size Chart:
| Product No. | Size(mm) | Weight | ||||
| A | B | C | D | E | (KG) | |
| BMA-001 | 150 | 300 | 110 | 260 | 129 | 15.1 |
| BMA-002 | 200 | 368 | 150 | 318 | 143 | 20.5 |
| BMA-003 | 250 | 430 | 200 | 380 | 155 | 26.9 |
| BMA-004 | 300 | 500 | 250 | 450 | 169 | 42.7 |
| BMA-005 | 350 | 560 | 250 | 460 | 179 | 50.8 |
| BMA-006 | 400 | 632 | 250 | 482 | 195 | 76.3 |
| BMA-007 | 450 | 700 | 250 | 500 | 209 | 102 |
| BMA-008 | 500 | 760 | 250 | 510 | 219 | 115 |
