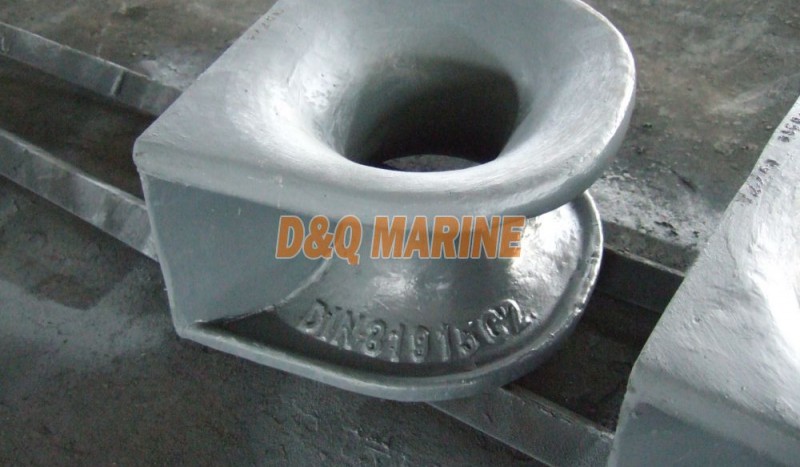

DIN81915 C Type Deck Mounted Mooring Chock
DIN81915 C Type Deck Mounted Mooring Chock
Description:
It is a very popular type mooring chock,usually install it at the bow or stern of vessel for general mooring purposes.Cast steel material.
Drawing:
Size Chart:
| Product No. | SWL(KN) | Dimension(mm) | Mass(kgs) | |||||
| L | W | H | H1 | A | B | |||
| DMC-001 | 10 | 285 | 160 | 250 | 125 | 125 | 90 | 19.5 |
| DMC-002 | 20 | 360 | 200 | 316 | 158 | 160 | 115 | 29 |
| DMC-003 | 30 | 450 | 250 | 390 | 195 | 200 | 140 | 48 |
| DMC-004 | 50 | 550 | 300 | 480 | 240 | 250 | 180 | 85 |
| DMC-005 | 80 | 680 | 360 | 586 | 293 | 320 | 225 | 136 |
| DMC-006 | 125 | 840 | 440 | 710 | 355 | 400 | 270 | 211 |
| DMC-007 | 200 | 1020 | 520 | 840 | 420 | 500 | 320 | 256 |
| DMC-008 | 320 | 1300 | 700 | 1100 | 550 | 600 | 400 | 840 |
