JIS C 3410 Control and Signal Cable With 250V

Category: JIS C 3410 Offshore & Marine Cables

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote

We can supply according to your requirement.

250V MPY, MPYE, FA- MPY, FA-MPYE

250V MPYC, MPYCE, FA- MPYC, FA-MPYCE

250V MPYCY, MPYCYE, FA- MPYCY, FA-MPYCYE

- Design guide : JIS C 3410(1999)

- Flame retardant : IEC 60332-1 & IEC 60332-3 Category A (FA-Type)

- Cold bend/impact : CSA 22.2 No. 03 (-35℃ ) (Cold Type)

- Max. conductor temperature : 85℃

1. CABLE TYPE: 250V (FA-)MPY, 250V (FA-)MPYC, 250V (FA-)MPYCY

No. of Cores : 2, 4, 5, 7, 9, 12, 16, 19, 23, 27, 33, 37, 44, 77 core

Nominal Area(mm2)：1.0

2. CABLE TYPE:250V (FA-)MPYE, 250V (FA-)MPYCE, 250V (FA-)MPYCYE

No. of Cores : 2 + Earth, 4 + Earth, 7 + Earth, 12 + Earth, 19 + Earth, 27 + Earth, 37 + Earth, 44 + Earth core

Nominal Area(mm2)：1.0

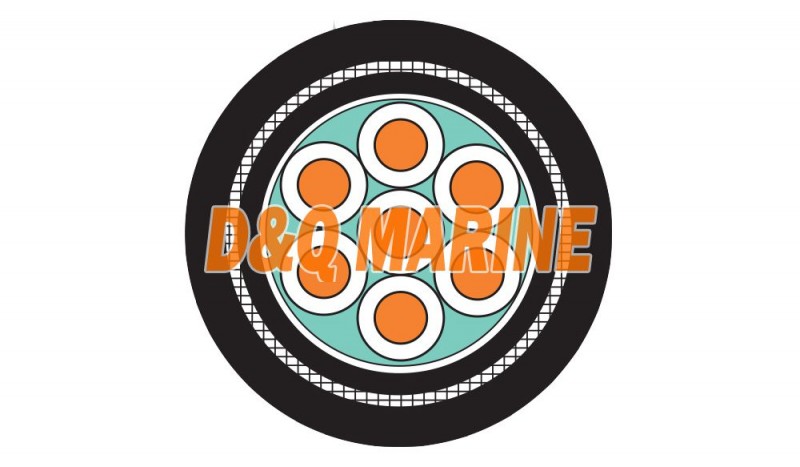

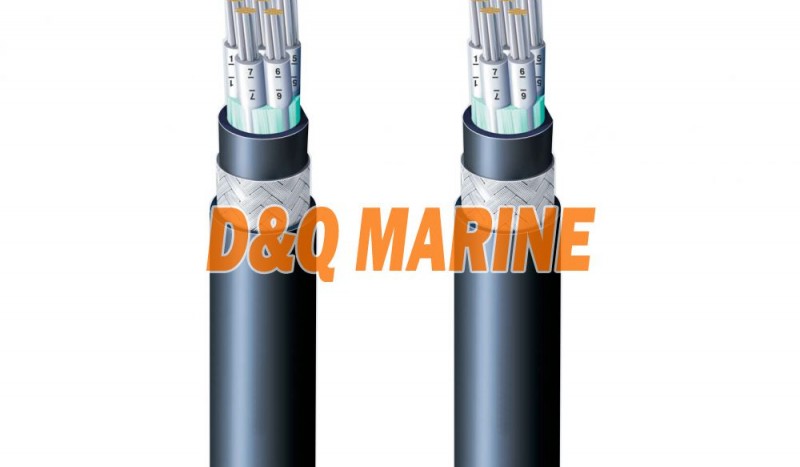

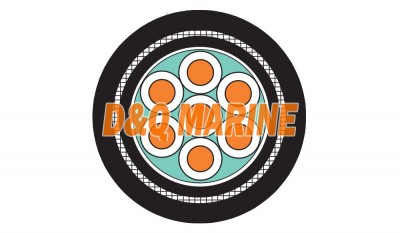

Classification	Code	Construction Detail
Conductor	M	Stranded tinned annealed copper wires as per JIS C 3410.
Insulation	P	EPR as per JIS C 3410.
Cabling		Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used. Suitable tape(s) may be applied on the cabled core.
Sheath	Y	PVC as per JIS C 3410.
Armor	C	Braid of galvanized steel wires. Coverage density is minimum 90%.
Paint		The white paint shall be painted uniformly on the steel wire braid Protective covering Type, paint is dispensable.
Protective Covering	Y	PVC as per JIS C 3410. Outer sheath color : BlacK
Core identification		Without Earth core	With Earth core
		Black No. on white insulation	Black No. on white insulation, G/Y
Note Fire resistant type (“FRA-”) & Cold type cable (“(C)”) can be supplied.
