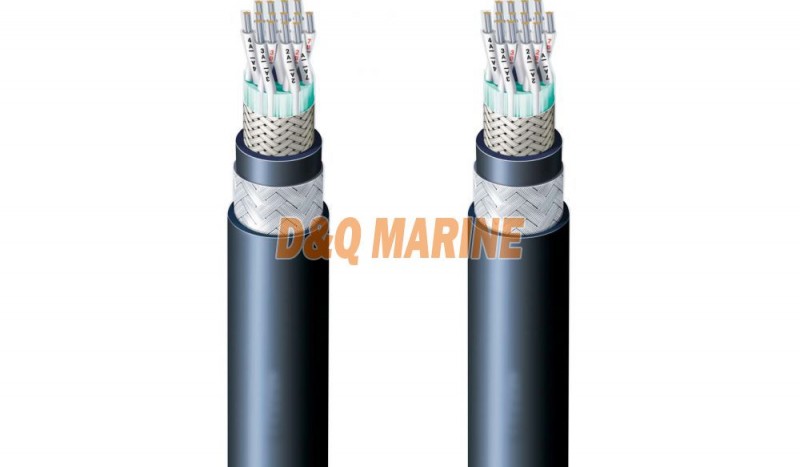

JIS C 3410 250V TTYS FA-TTYS Telephone & Instumentation cable

Category: JIS C 3410 Offshore & Marine Cables

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote

We can supply according to your requirement.

250V TTYS, FA- TTYS

250V TTYCS, FA- TTYCS

250V TTYCYS, FA- TTYCYS

- Design guide : JIS C 3410(1999)

- Flame retardant : IEC 60332-1 & IEC 60332-3 Category A (FA-Type)

- Cold bend/impact : CSA 22.2 No. 03 (-35℃ ) (Cold Type)

- Max. conductor temperature : 60℃

1. CABLE TYPE:250V (FA-)TTYS, 250V (FA-)TTYCS, 250V (FA-)TTYCYS

No. of Pair, Triad or Quad: 1, 1T, 1Q, 2, 3, 4, 7, 10, 14, 19, 24, 30, 37, 48,

Nominal Area(mm2)：2, 3, 4, 6, 8, 14, 20, 28, 38, 48, 60, 74, 96.

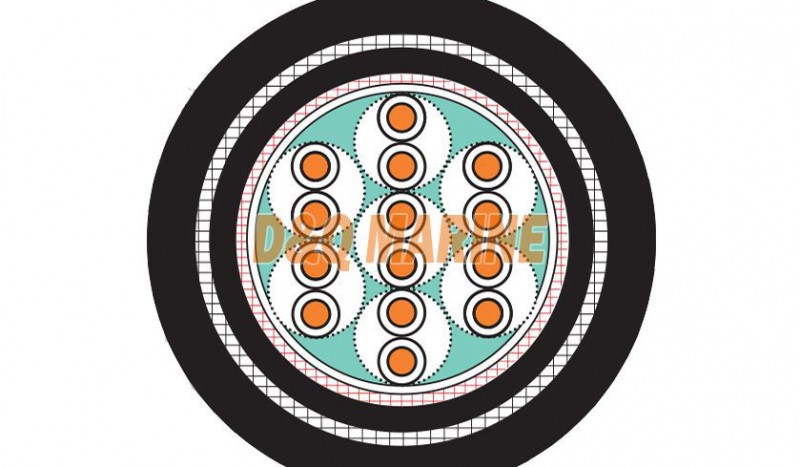

Classification	Code	Construction Detail
Conductor	TT	Stranded plain annealed copper wires as per JIS C 3410.
Insulation		PVC as per JIS C 3410.
Twisting		Two Insulated cores shall be twisted together to form a pair
Cabling		Twisted pairs shall be cabled. Flame retardant & non-hygroscopic fillers may be used . Suitable tape(s) may be applied on the cabled core.
Common shield	S	Tinned copper wire braid
Sheath	Y	PVC as per JIS C 3410.
Armor	C	Braid of galvanized steel wires. Coverage density is minimum 90%.
Paint		The white paint shall be painted uniformly on the steel wire braid Protective covering Type, paint is dispensable.
Protective Covering	Y	PVC as per JIS C 3410. Outer sheath color : Black
Core identification		Printed pair number and Alphabet letter on the white insulation ex) 4P : (1A,1B), (2A,2B), (3A,3B), (4A,4B) 1T, 1Q cable shall be identified by the black number on the white insulation
Note Fire resistant type (“FRA-”) & Cold type cable (“(C)”) can be supplied.
