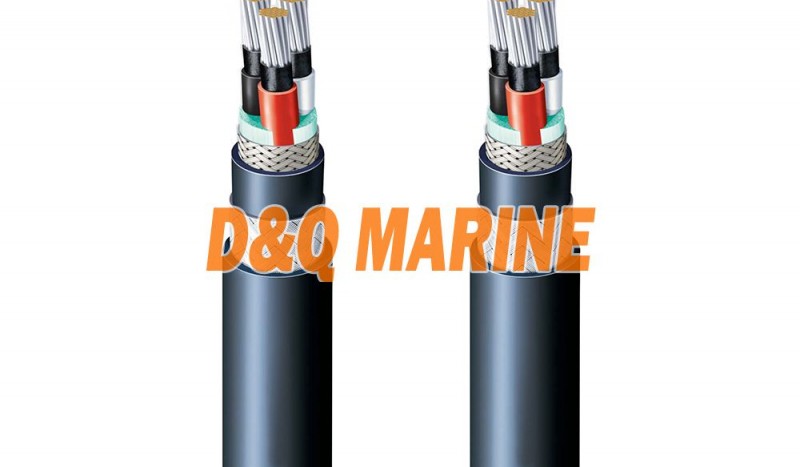

JIS C 3410 0.6/1kV (FA-)SPYCBS, 0.6/1kV (FA-)SPYCBYS Power and Lighting Cable

Reliable marine equipment supplied with technical support, quality control and worldwide delivery.

Loading product images...

Category: JIS C 3410 Offshore & Marine Cables

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

We can supply according to your requirement.

0.6/1kV SPYCBS, FA- SPYCBS

0.6/1kV SPYCBYS, FA- SPYCBYS

0.6/1kV DPYS, TPYS, FA-DPYS, FA-TPYS

0.6/1kV DPYCS, TPYCS, FA-DPYCS, FA-TPYCS

0.6/1kV DPYCYS, TPYCYS, FA-DPYCYS, FA-TPYCYS

- Design guide : JIS C 3410(1999)

- Flame retardant : IEC 60332-1 & IEC 60332-3 Category A (FA-Type)

- Cold bend/impact : CSA 22.2 No. 03 (-35℃ ) (Cold Type)

- Max. conductor temperature : 85℃

1. CABLE TYPE:0.6/1kV (FA-)SPYCBS, 0.6/1kV (FA-)SPYCBYS

No. of Cores : 1 core

Nominal Area(mm2)：1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120.

2. CABLE TYPE:0.6/1kV (FA-)DPYS, 0.6/1kV (FA-) DPYCS, 0.6/1kV (FA-)DPYCYS

No. of Cores : 2 core

Nominal Area(mm2)：1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120.

3. CABLE TYPE:0.6/1kV (FA-)TPYS, 0.6/1kV (FA-)TPYCS, 0.6/1kV (FA-)TPYCYS

No. of Cores : 3 core

Nominal Area(mm2)：1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120.

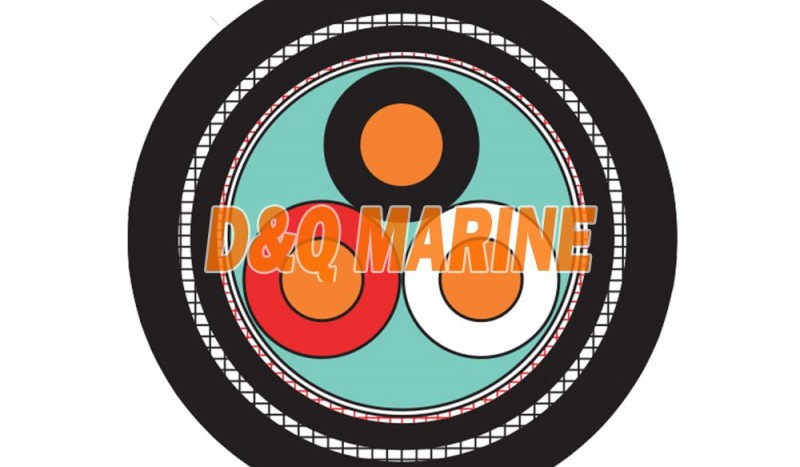

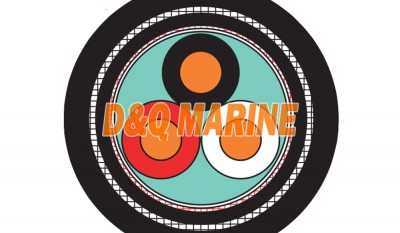

Classification	Code	Construction Detail
Conductor	S(D,T)	Stranded tinned annealed copper wires as per JIS C 3410.
Insulation	P	EPR as per JIS C 3410.
Cabling		Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used. Suitable tape(s) may be applied on the cabled core.
Common shield	S	Tinned copper wire braid
Sheath	Y	PVC as per JIS C 3410.
Armor	C (CB)	Braid of copper alloy wires (-CB type) or galvanized steel wires (-C type). Coverage density is minimum 90%.
Paint		The white paint shall be painted uniformly on the steel wire braid Protective covering Type, paint is dispensable.
Protective Covering	Y	PVC as per JIS C 3410. Outer sheath color : Black
Core identification		No. of cores	Insulation Color
		1C	Black
		2C	Black, White
		3C	Black, White, Red
