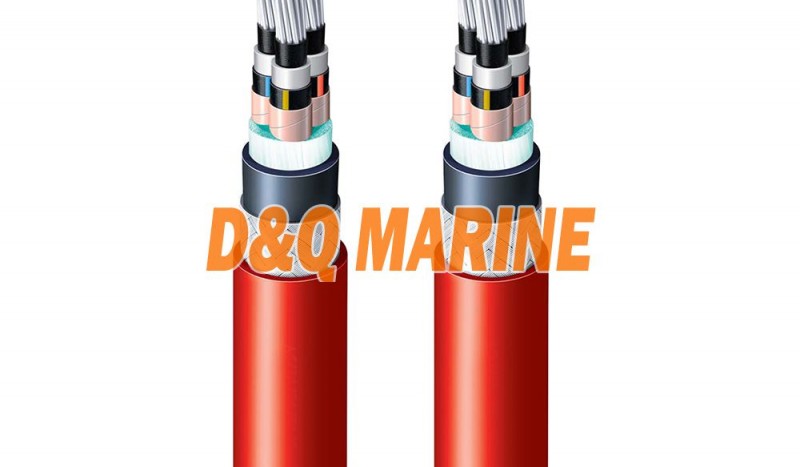

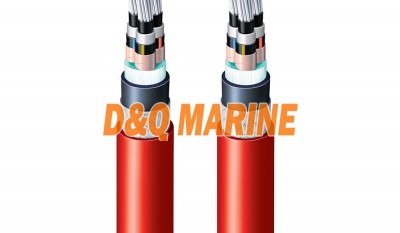

High Voltage 3.6/6, 6/10, 8.7/15 Power Cable
CABLE DESIGNATION
3.6/6kV SPYCB(Y), TPYC(Y), FA-SPYCB(Y), FA-TPYC(Y)
6/10kV SPYCB(Y), TPYC(Y), FA-SPYCB(Y), FA-TPYC(Y)
8.7/15kV SPYCB(Y), TPYC(Y), FA-SPYCB(Y), FA-TPYC(Y)
APPLICATION STANDARD
- Design guide : IEC 60092-350, -354
- Flame retardant : IEC 60332-1 & IEC 60332-3 Category A (FA-Type)
- Cold bend/impact : CSA 22.2 No. 03 (-35 ℃) (Cold Type)
- Max. conductor temperature : 90 ℃
Technical Data:
1. CABLE TYPE 3.6/6kV (FA-)SPYCB, 3.6/6kV (FA-)SPYCBY
No. of Cores：1 core
Nominal Area：10，16，25，35，50，70，95，120，150，185，240，300，400，500，630.
2. CABLE TYPE: 3.6/6kV (FA-)TPYC, 3.6/6kV (FA-)TPYCY
No. of Cores：3 core
Nominal Area：10, 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300.
3.CABLE TYPE: 6/10KV (FA-)SPYCB, 6/10KV (FA-)SPYCBY
No. of Cores：1 core
Nominal Area：16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630.
4. CABLE TYPE: 6/10KV (FA-)TPYC, 6/10KV (FA-)TPYCY
No. of Cores：3 core
Nominal Area(mm2)：16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300.
5. CABLE TYPE: 8.7/15kV (FA-)SPYCB, 8.7/15kV (FA-)SPYCBY
No. of Cores：1 core
Nominal Area(mm2)：25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500, 630.
6. CABLE TYPE: 8.7/15kV (FA-)TPYC, 8.7/15kV (FA-)TPYCY
No. of Cores：3 core
Nominal Area(mm2)：25, 35, 50, 70, 95, 120, 150, 185, 240, 300.

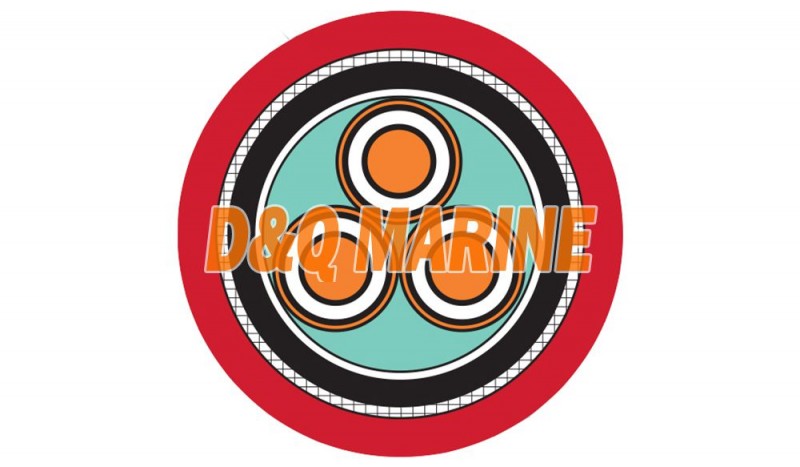

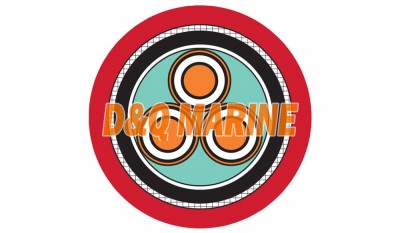

| Classification | Code | Construction Detail |
| 1. Conductor | T(S) |
Stranded tinned annealed copper wires as per IEC 60228, Class B |
| 2. Conductor screen | Semi-conducting layer (tape/compound) | |
| 3. Insulation | P | EPR as per IEC 60092-351. |
| 4. Insulation screen |
.Non-metallic part :
Semi-conducting layer(tape/compound). .Metallic part : Copper tape. .A suitable separator tape(s) may be applied over the metallic part.C14 |
|
| 5.Cabling |
.Three insulation screened
conductors shall be cabled. .Flame retardant & non-hygroscopic fillers may be used. .Suitable tape(s) may be applied on the cabled core. |
|
| 6. Sheath | Y | ST2(PVC) as per IEC 60092-359. |
| 7. Armor |
C (CB) |
.Braid of copper alloy wires
(-CB type) or galvanized steel wires (-C type). .Coverage density is minimum 90% |
| 8. Paint |
.The red paint shall be painted
uniformly on the steel wire braid .“CB” Type or Protective covering Type, paint is dispensable. |
|
| 9. Protective covering | Y |
ST2 (PVC) as per IEC
60092-359. Outer sheath color : Red |
| 10. Core identification | 3C : Red, Yellow, Blue |
