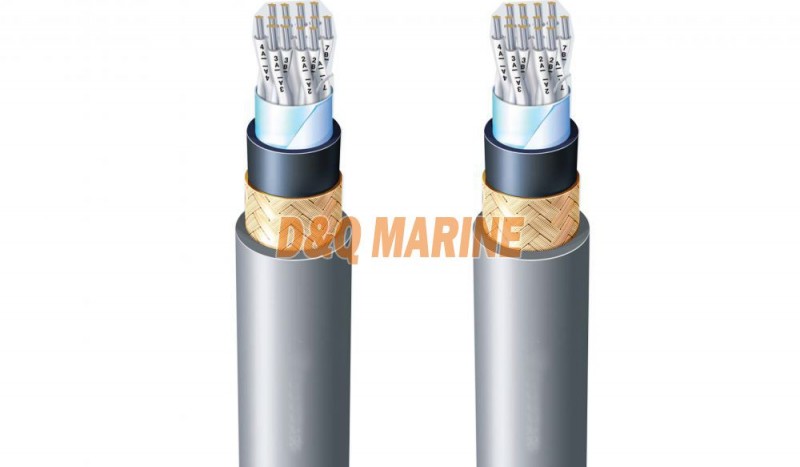

JIS C 3410 250V RCOP(OS) Telephone & Instrumentation Cable

Category: JIS C 3410 Offshore & Marine Cables

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote

We can supply according to your requirement.

250V RCOP(OS)

- Design guide : IEC 60092-350, -376

- Flame retardant : IEC 60332-1 & IEC 60332-3 Category A

- Cold bend/impact : CSA 22.2 No. 03 (-35℃ ) (Cold Type)

- Max. conductor temperature : 90℃

1. CABLE TYPE:250V RCOP(OS) 250V RCOP(OS)

No. of Pairs: 1Q, 2P, 4P, 5P, 6P, 7P, 8P, 10P, 12P, 14P, 16P, 19P, 20P, 24P, 30P, 37P.

No. of Triads: 2T, 4T, 5T, 6T, 7T, 8T, 10T, 12T, 14T, 16T, 19T, 20T, 24T, 30T, 37T.

Nominal Area(mm2)：1.0

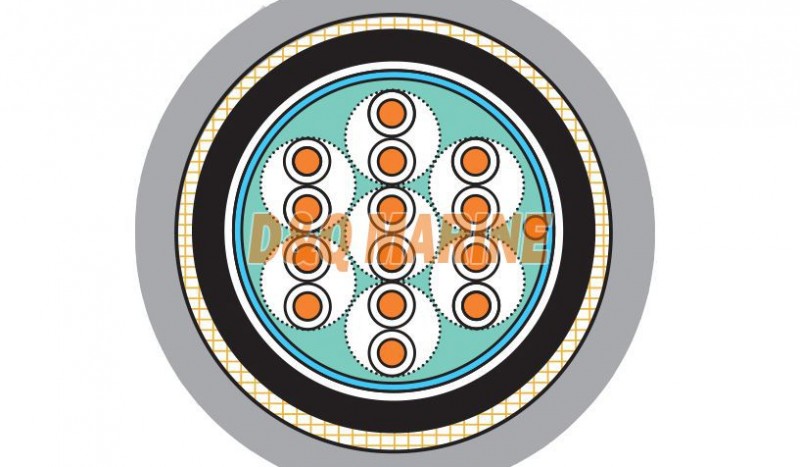

Classification	Code	Construction Detail
Conductor		Stranded tinned annealed copper wires as per IEC 60228, Class 2
Insulation	R	EPR as per IEC 60092-351
Twisting		Two/Three Insulated cores shall be twisted together to form a pair/triad.
Cabling		Twisted pairs/triads shall be cabled. Flame retardant & non-hygroscopic fillers may be used . Suitable tape(s) may be applied on the cabled core.
Collective screen	(OS)	AL/PS tape + Tinned copper drain wire (0.75mm2) A suitable tape may be applied on the collective screen
Inner sheath	C	SE1 as per IEC 60092-359
Armor	O	Braid of plain annealed copper wires Coverage density is minimum 90%.
Outer sheath	P	ST2 (PVC) as per IEC 60092-359. - Outer sheath color : Grey (for Non-IS Type) or Blue (for IS Type
Core identification		Printed pair/triad number and Alphabet letter on the white insulation. ex) 4P : (1A,1B), (2A,2B), (3A,3B), (4A,4B)
Note Fire resistant type (“FR-”) & Cold type cable (“(C)”) can be supplied.
