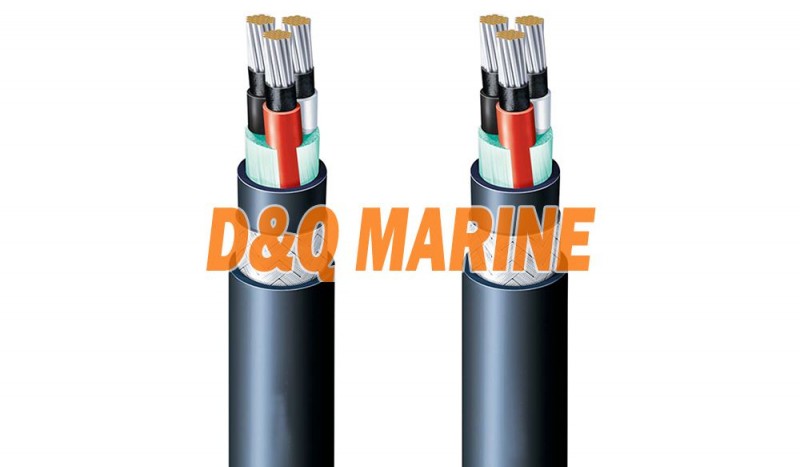

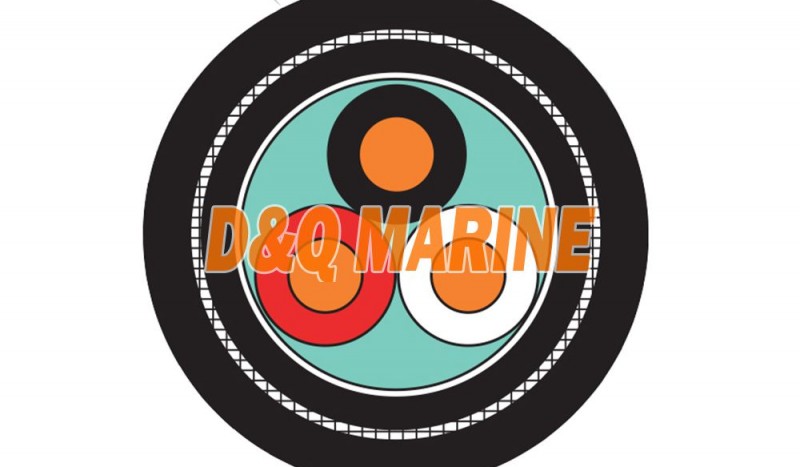

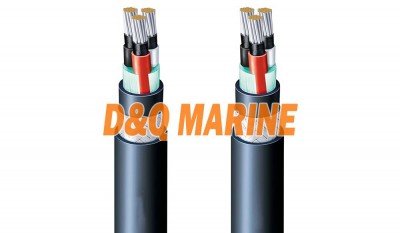

JIS C 3410 0.6/1kV D(T,F,5,6,10)PY, FA-D(T,F,5,6,10)PY Cable

JIS C 3410 0.6/1kV D(T,F,5,6,10)PY, FA-D(T,F,5,6,10)PY Cable

CABLE DESIGNATION

0.6/1kV D(T,F,5,6,10)PY, FA-D(T,F,5,6,10)PY

0.6/1kV D(T,F,5,6,10)PYC, FA-D(T,F,5,6,10)PYC

0.6/1kV D(T,F,5,6,10)PYCY, FA-D(T,F,5,6,10)PYCY

0.6/1kV D(T)PYE, D(T)PYCE, D(T)PYCYE

APPLICATION STANDARD

- Design guide : JIS C 3410(1999)

- Flame retardant : IEC 60332-1 & IEC 60332-3 Category A (FA-Type)

- Cold bend/impact : CSA 22.2 No. 03 (-35℃ ) (Cold Type)

- Max. conductor temperature : 85℃

TECHNICAL DATA

1. CABLE TYPE: 0.6/1kV (FA-)DPY, 0.6/1kV (FA-)DPYC, 0.6/1kV (FA-)DPYCY

No. of Cores：2 core

Nominal Area(mm2)：1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185.

2. CABLE TYPE: 0.6/1kV (FA-)DPYE, 0.6/1kV (FA-)DPYCE, 0.6/1kV (FA-)DPYCYE

No. of Cores：2 +Earth core

Nominal Area(mm2)：1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95.

3. CABLE TYPE: 0.6/1kV (FA-)TPY, 0.6/1kV (FA-)TPYC, 0.6/1kV (FA-)TPYCY

No. of Cores：3 core

Nominal Area(mm2)：1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185.

4. CABLE TYPE: 0.6/1kV (FA-)TPYE, 0.6/1kV (FA-)TPYCE, 0.6/1kV (FA-)TPYCYE

No. of Cores：3+Earth core

Nominal Area(mm2)：1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 90, 120, 150, 185.

5. CABLE TYPE: 0.6/1kV (FA-)FPY, 0.6/1kV (FA-)FPYC, 0.6/1kV (FA-)FPYCY

No. of Cores : 4 core

Nominal Area(mm2)：1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 70, 95, 120, 150, 185.

6. CABLE TYPE:0.6/1kV (FA-)5PY, 0.6/1kV (FA-)5PYC, 0.6/1kV (FA-)5PYCY

No. of Cores : 5 core

Nominal Area(mm2)：1.5, 2.5, 4, 6, 10, 16.

7. CABLE TYPE:0.6/1kV (FA-)6PY, 0.6/1kV (FA-)6PYC, 0.6/1kV (FA-) 6PYCY

No. of Cores : 6 core

Nominal Area(mm2)：1.5, 2.5, 4, 6.

8. CABLE TYPE:0.6/1kV (FA-)10PY, 0.6/1kV (FA-)10PYC, 0.6/1kV (FA-)10PYCY

No. of Cores : 10 core

Nominal Area(mm2)：1.5, 2.5, 4.
