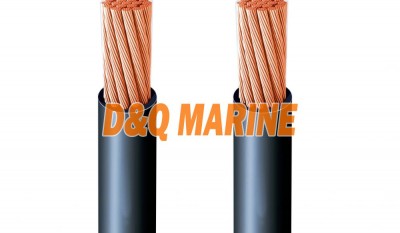

JIS C 3410 0.6/1kV SYP SCP Portable and Flexible Cable:
CABLE DESIGNATION
0.6/1kV SYP
0.6/1kV SCP
APPLICATION STANDARD
- Design guide : JIS C 3410(1999)
- Flame retardant : IEC 60332-1
- Cold bend/impact : CSA 22.2 No. 03 (-35℃ ) (Cold Type)
- Max. conductor temperature : 75 ℃(0.6/1kV SYP)
85℃ (0.6/1kV SCP)
TECHNICAL DATA
CABLE TYPE:0.6/1kV SYP
Conductor Size(mm2): 0.75, 1, 1, 5, 4, 6, 10, 16.
CABLE TYPE:0.6/1kV SCP
Conductor Size(mm2): 1.5, 2.5, 4, 6, 10, 16, 25, 35, 50, 90, 95.
| Classification | Code | Construction Detail |
|
Conductor |
S |
Bunch stranded plain or tinned
annealed copper wires as per JIS C 3410. A suitable tape may be applied on conductor. |
| Insulation | YP | PVC as per JIS C 3410. |
| CP |
FR-XLPE as per JIS C 3410. |
