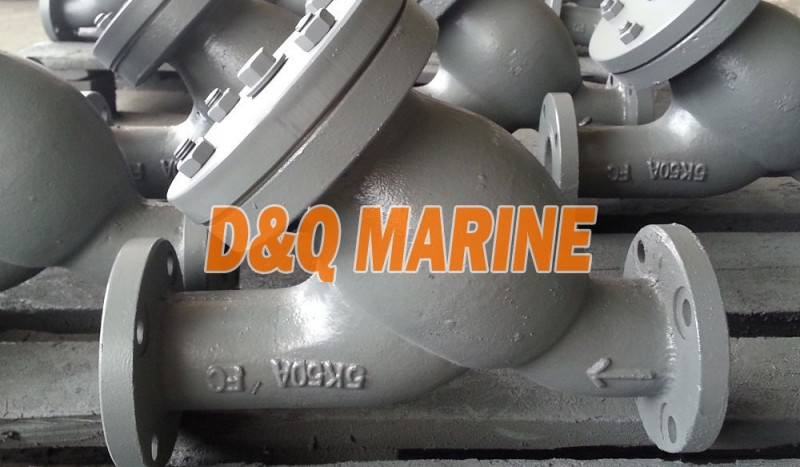

Marine Cast Iron Y Type Strainer JIS F7220
Category:
JIS Marine Valve
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
Marine Cast Iron Y Type Strainer JIS F7220:
China Marine Cast Iron Y Type Strainer JIS F7220:

Marine Y type strainer is normally installed in the inlet side of the hydraulic control valve, reducing valves, drain traps, inlet pressure water valves and steam bleeding ejectors etc in the ship's machinery space, used to remove the impurities in the medium in order to protect the equipment and pipe fittings.

Technical Specification:

1. Design and manufacturing standard: JIS F7220

2. Inspection and Test standard: JIS F7400

3. Nominal Pressure: 5K and 10K

4. Connection Type: Flange

5. Flange Standard: JIS B2220 FF 5K and 10K

6. Test Pressure: 5K-1.05Mpa, 10K-2.1Mpa

Suitable Medium:

Fluid Condition Max Working Pressure (Mpa)
5K 10K
Steam of 220℃ or less 0.5 1.0
Air and gas 0.5 1.0
nonshock water of 120℃ or less 0.7 1.4

Main Material:

Body/Bonnet: Cast Iron

Strainer Cylinder: SUS304

Strainer Wire: SUS304

Sut/Nut: SS400

Main Data for Joining(mm):

DN d L D C Hole (n-d) t H
20 20 200 85 65 4-12 14 127
25 25 225 95 75 4-12 14 155
32 32 260 115 90 4-15 16 164
40 40 280 120 95 4-15 16 180
50 50 320 130 105 4-15 16 208
65 65 350 155 130 4-15 18 253
80 80 373 180 145 4-19 18 268
100 100 390 200 165 8-19 20 286
125 125 410 235 200 8-19 20 295
150 150 430 265 230 8-19 20 318

*The flange size in the upper column conforms to JIS B2220 5K.


Send us your inquiry now

we would revert with you within 24 hours.

We'll never share your email with anyone else.
Please send the specification, quantity, class certificate or other information.
