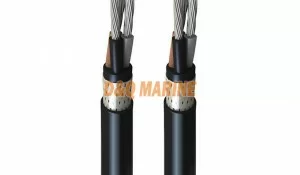

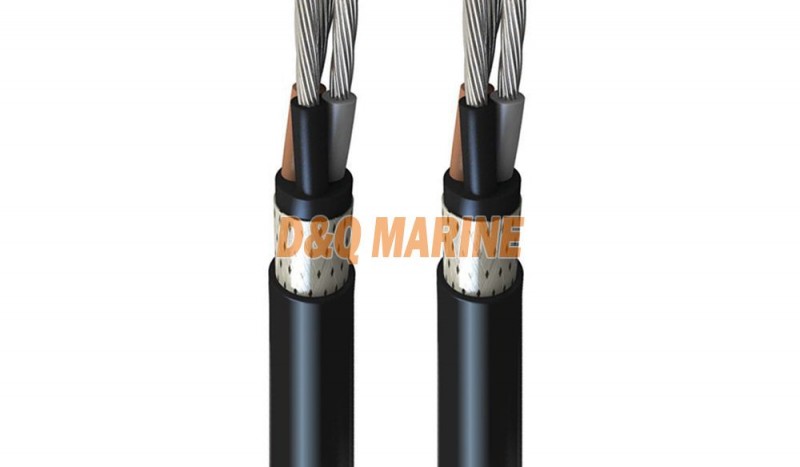

3.6/6KV 6/10KV 8.7/15KV Shipboard medium-voltage power cables
CYJ85/SC CYJ86/SC CYJ95/SC CYJ96/SC Shipboard medium-voltage Power Cable:
The cable is used for ship-board and off-shore building to transmit power.
Standards:
IEC60092-350
IEC60092-354
IEC60332-1
IEC60332-3 cat A
IEC60754-2
IEC61034-2
Cable construction:
Conductor: Tinned copper
Conductor screening: Semi-conducting material
Insulation: XLPE
Insulation screening: Semi-conducting material
Inner covering: Halogen-free tape
Armour: Tinned copper wire or galvanized steel wire braid
Outer sheath: cross-linked PO/PO
Core & size:
Core: 1,3
Size：10,16,25,35,50,70,95,120,150,185,240,300
