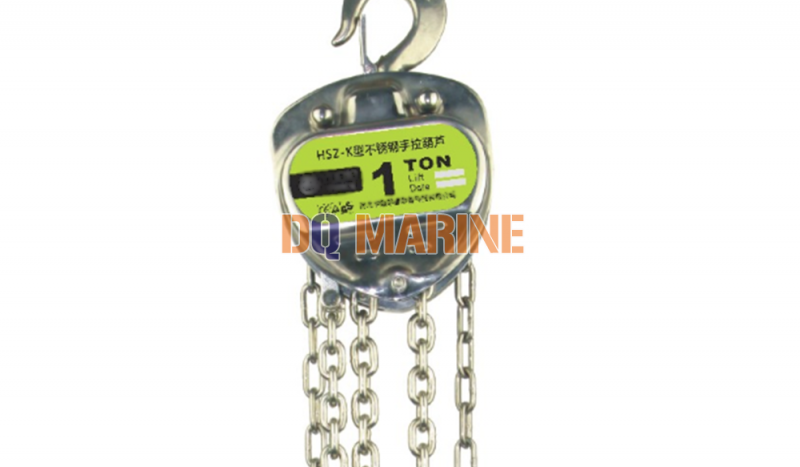

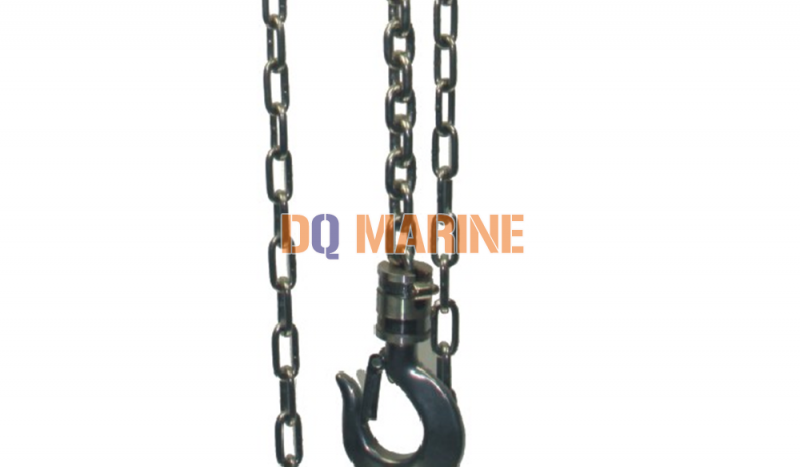

HSZ-K Stainless Steel Chain Hoist
HSZ-K Stainless Steel Chain Hoist Introduction
Material: 304 stainless steel chain hoist
Anti-dust, Anti-corrosion, Anti-Magnetic
Application: Chemical, oil, food process, medical industry and so on. Also used in the wet and acid, alkaline and corrosion environment.
Small size, light weight, and portable.
Certification: ISO 9001
Product Details
The parameter table
| Model | HSZ-B0.5 | HSZ-B1 | HSZ-B1.5 | HSZ-B2 | HSZ-B3 | HSZ-B5 | HSZ-B10 | HSZ-B20 | |
| Rated Load(T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
| Lifting Height(m) | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | |
| Test Load(T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 30 | |
| Min Distance Between Two Hooks(mm) | 280 | 300 | 360 | 380 | 470 | 600 | 730 | 1000 | |
| Max Hand Force(N) | 167 | 314 | 373 | 314 | 373 | 516 | 516 | 516 | |
| Dia of Load Chain(mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | |
| Falls of Chain | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Dimensions(mm) | A | 142 | 142 | 178 | 142 | 178 | 210 | 338 | 580 |
| B | 126 | 126 | 142 | 126 | 142 | 165 | 165 | 195 | |
| C | 280 | 300 | 360 | 380 | 470 | 600 | 730 | 1000 | |
| D | 22 | 22 | 28 | 27 | 34 | 44 | 54 | 68 | |
| Net Weight(kg) | 9.5 | 10 | 15 | 14 | 24 | 36 | 68 | 150 | |
| The Weight Per Meter Lifting(kg) | 1.8 | 1.8 | 2.4 | 2.7 | 3.8 | 5.3 | 9.8 | 19.6 | |
| Package Size( mm) | 25*18*17 | 25*17*16 | 26*23*17 | 27*20*16 | 32*23*17 | 41*30*/21 | 62*50*27 | 80*70*36 | |
