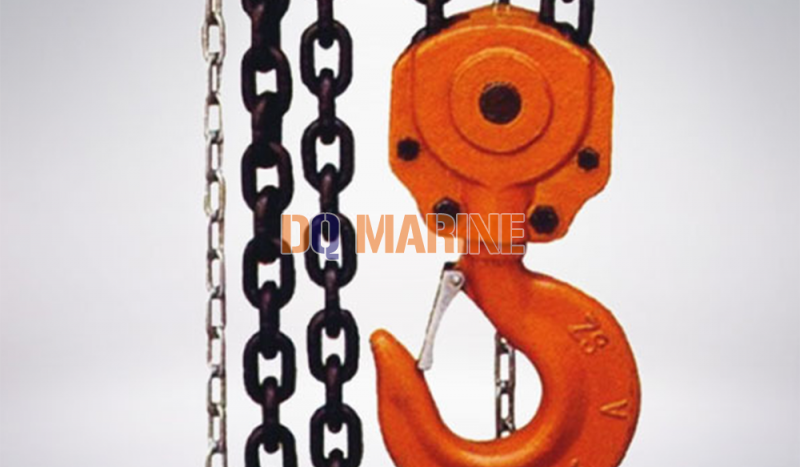

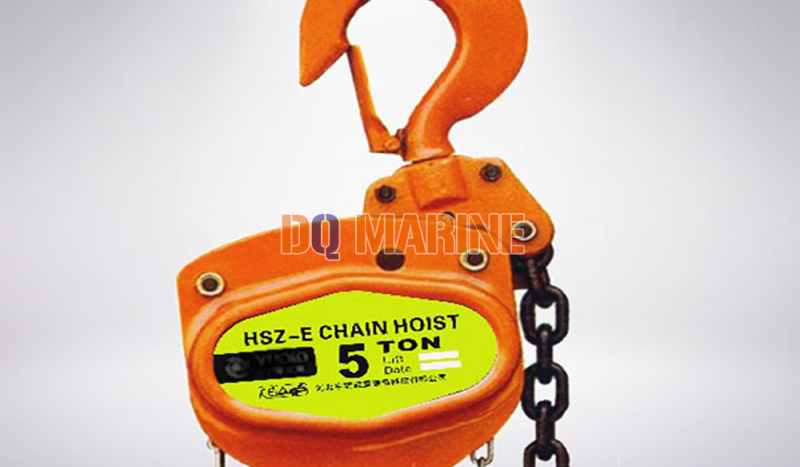

HSZ-E Chain Block
HSZ-EChain Block Introduction
Gearbox and cover can resist strong hit.
Mechanical clutch is safety and reliable braking system.
Double spring pawls, more durable.
Strength and practicability with the hook.
G80 alloy load chain and galvanized hand chain as the standard configuration.
Product Details
The parameter table
| Model | HSZ-E0.5 | HSZ-E1 | HSZ-E1.5 | HSZ-E2 | HSZ-E3 | HSZ-E5 | HSZ-E10 | HSZ-E20 | HSZ-E30 | HSZ-E50 | |
| Rated Load (T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | |
| Lifting Height (m) | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Test Load (KN) | 7.5 | 15 | 22.5 | 45 | 45 | 62.5 | 125 | 250 | 375 | 625 | |
| Effort Require To Lift Max Load (N) | 200 | 320 | 360 | 365 | 385 | 435 | 435 | 435*2 | 435*2 | 435*2 | |
| Dia of Load Chain (mm) | 6 | 6 | 8 | 8 | 8 | 10 | 10 | 10 | 10 | 10 | |
| Net Weight (kg) | 8.4 | 11 | 16.2 | 18.5 | 25.6 | 42.8 | 79.5 | 193 | 220 | 1092 | |
| Extra Weight Per Meter (kg) | 1.7 | 1.7 | 2.3 | 2.3 | 3.7 | 5.6 | 9.7 | 19.4 | 26.4 | 48.4 | |
| Dimensions (mm) | A | 113 | 140 | 161 | 161 | 161 | 183 | 207 | 215 | 350 | 406 |
| B | 127 | 158 | 187 | 187 | 210 | 253 | 398 | 650 | 680 | 962 | |
| C | 270 | 317 | 399 | 414 | 465 | 636 | 798 | 890 | 1380 | 2578 | |
| D | 35 | 40 | 45 | 50 | 58 | 64 | 85 | 110 | 110 | 110 | |
| k | 30 | 34 | 38 | 41 | 48 | 52 | 64 | 85 | 85 | 130 | |
