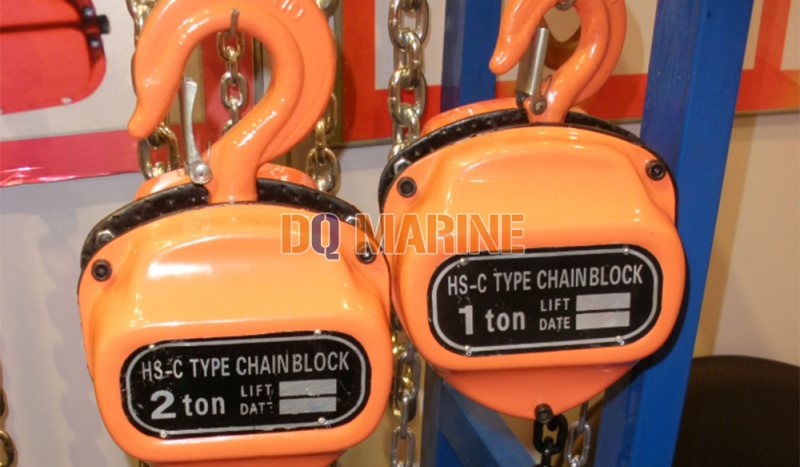

HSZ-C Chain Block
HSZ-CChain Block Introduction
Double pawls braking system.
Double guide roller, goods lifting smoother, not easy to hold chains.
The hooks with stamped and heat treatment have high strength and resistance.
G80 alloy load chain and galvanized hand chain as the standard configuration.
Product Details
The parameter table
| Model | HSZ-C0.5 | HSZ-C1 | HSZ-C1.5 | HSZ-C2 | HSZ-C3 | HSZ-C5 | HSZ-C10 | HSZ-C20 | |
| Rated Load (T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
| Lifting Height (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Test Load (T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 30 | |
| Min Distance Between Two Hooks(mm) | 326 | 300 | 360 | 380 | 470 | 600 | 730 | 1000 | |
| Effort Require To Lift Max Load (N) | 210 | 340 | 390 | 340 | 390 | 420 | 450 | 450 | |
| Dia of Load Chain (mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | |
| Load Chain Number | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Dimensions (mm) | A | 151 | 151 | 183 | 151 | 183 | 215 | 360.5 | 585 |
| B | 131 | 131 | 143 | 131 | 143 | 163 | 163 | 191 | |
| C | 23 | 23 | 29.5 | 29.5 | 34 | 44 | 57 | 78 | |
| D | 35 | 35 | 40.5 | 40.5 | 46.5 | 62 | 81 | 106 | |
| Net Weight (kg) | 10.5 | 10.5 | 15 | 14.9 | 23.2 | 37.5 | 68 | 150 | |
| Extra Weight Per Meter (kg) | 1.8 | 1.8 | 2.4 | 2.7 | 3.8 | 5.3 | 9.8 | 19.6 | |
| Package Size (cm) | 25*18*17 | 25*17*16 | 26*23*17 | 27*20*16 | 32*23*17 | 41*30*21 | 62*50*27 | 80*70*36 | |
