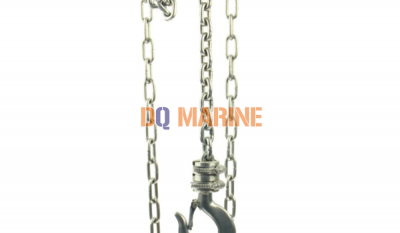

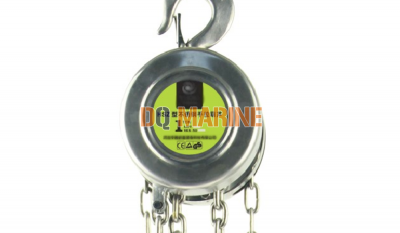

HSZ-B Stainless Steel Chain Hoist

Reliable marine equipment supplied with technical support, quality control and worldwide delivery.

Loading product images...

Category: Chain Block

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

We can supply according to your requirement.

Material: 304 stainless steel chain hoist

Anti-dust, Anti-corrosion, Anti-Magnetic

Application: Chemical, oil, food process, medical industry and so on. Also used in the wet and acid, alkaline and corrosion environment.

Small size, light weight, and portable.

The parameter table

Model		HSZ-B0.5	HSZ-B1	HSZ-B1.5	HSZ-B2	HSZ-B3	HSZ-B5	HSZ-B10	HSZ-B20
Rated Load(T)		0.5	1	1.5	2	3	5	10	20
Lifting Height(m)		2.5	2.5	2.5	2.5	3	3	3	3
Test Load(T)		0.75	1.5	2.25	3	4.5	7.5	15	30
Min Distance Between Two Hooks(mm)		280	300	360	380	470	600	730	1000
Max Hand Force(N)		167	314	373	314	373	516	516	516
Dia of Load Chain(mm)		6	6	8	6	8	10	10	10
Falls of Chain		1	1	1	2	2	2	4	8
Dimensions(mm)	A	142	142	178	142	178	210	338	580
	B	126	126	142	126	142	165	165	195
	C	280	300	360	380	470	600	730	1000
	D	22	22	28	27	34	44	54	68
Net Weight(kg)		9.5	10	15	14	24	36	68	150
The Weight Per Meter Lifting(kg)		1.8	1.8	2.4	2.7	3.8	5.3	9.8	19.6
Package Size( mm)		251817	251716	262317	272016	322317	4130/21	625027	807036
