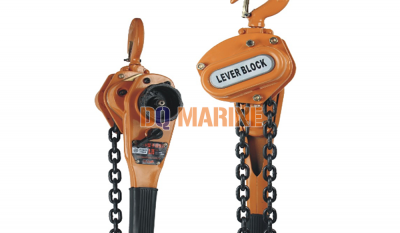

HSH-V Lever Hoist:
HSH-V Lever Hoist Introduction
Plate, gear, long and short spindle with heat treatment, improve the hoist strength.

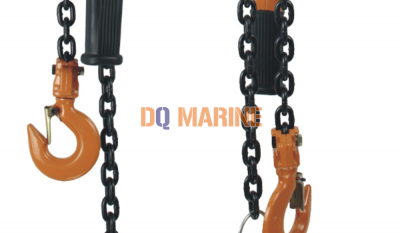

Upper and lower hooks with safety latch. They are made of alloy steel with forged.
Weston automatic braking system.
360 degrees swivels handles suit to the small place.
According to the human mechanics design, easy to operate.
Product Details
The sizes table
| Model | HSH-V0.75T | HSH-V1.5T | HSH-V3T | HSH-V6T | |
| Capacity(kg) | 750 | 1500 | 3000 | 6000 | |
| Standard lifting height | 1.5 | 1.5 | 1.5 | 1.5 | |
| Testing load(kg) | 1125 | 2500 | 4500 | 7500 | |
| Force for Full Load | 250 | 310 | 410 | 420 | |
| Load chain size | Falls | 1 | 1 | 2 | 3 |
| dia of chain | 6x18 | 8x24 | 10x30 | 10x30 | |
| Hmin Headroom | H mm | 440 | 550 | 650 | 650 |
| Handle Length | D mm | 285 | 410 | 410 | 410 |
| Net Weight (KG) | 6.7 | 11 | 17.5 | 25.5 | |
| Dimensions (mm) | A | 155 | 190 | 200 | 200 |
| B | 120 | 140 | 150 | 150 | |
| C | 130 | 150 | 200 | 200 | |
| D | 37 | 45 | 55 | 65 | |
| E | 35 | 42 | 42 | 45 | |
