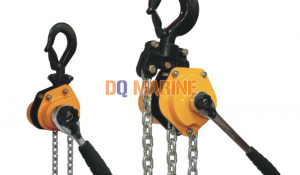

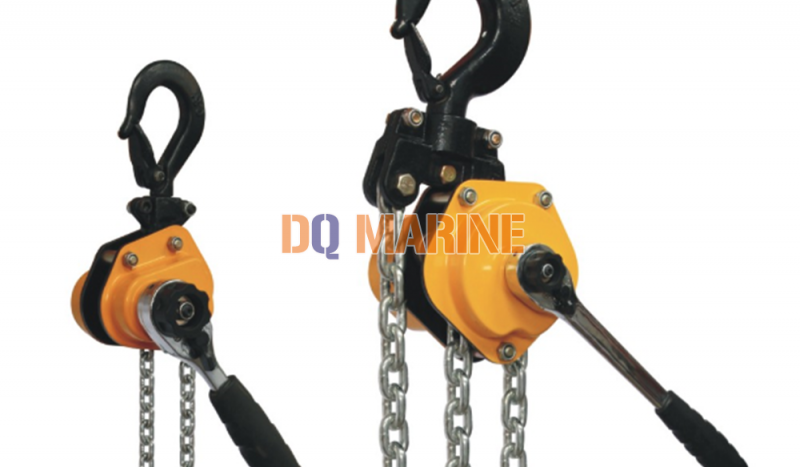

HSH-KA Lever Hoist:
HSH-KA Lever Hoist Introduction
Suspending device and hooks are made of high strength and anti-aging alloy steel, when overload, they will be over shape not break down.

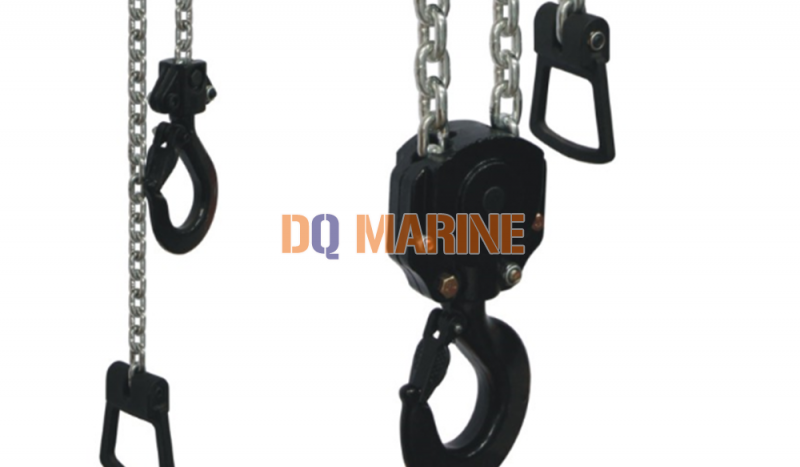

Hooks with firm safety latch can rotate 360 degrees.
According with human body mechanics handle design, easy to operate.
Enclose cover can protect the inner part not be polluted.
Product Details
The sizes table
| Model | HSH-KA250 | HSH-KA500 | HSH-KA750 | HSH-KA1500 | HSH-KA2500 | HSH-KA3000 | HSH-KA5000 | HSH-KA6000 | |
| Rated Load(kg) | 250 | 500 | 750 | 1500 | 2500 | 3000 | 5000 | 6000 | |
| Lifting Height(m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Force For Full Load(N) | 260 | 260 | 220 | 240 | 330 | 350 | 350 | 380 | |
| Test Load(Kg) | 375 | 750 | 1125 | 2250 | 3750 | 4500 | 7500 | 9000 | |
| Dia of Load Chain(N) | 4x12 | 4x12 | 5x15 | 7x21 | 9x27 | 9x27 | 9x27 | 9x27 | |
| Net Weight(Kg) | 2.2 | 3.2 | 4.7 | 7.6 | 14 | 14 | 22 | 22 | |
| Gross Weight(Kg) | 2.4 | 3.4 | 5 | 8 | 14.5 | 14.5 | 22.5 | 22.5 | |
| Package size(cm) | 21x12.5x11.5 | 23.5x13.5x12 | 30x14x14.5 | 33x18x15.7 | 44x20x19 | 44x20x19 | 49.5x23.5x21.5 | 49.5x23.5x21.5 | |
| Extra Weight Per Meter(kg/m) | 0.364 | 0.346 | 0.541 | 1.1 | 1.8 | 1.8 | 1.8 | 1.8 | |
| Dimensions(mm) | a | 86 | 95 | 121 | 139 | 173 | 173 | 173 | 173 |
| b | 155 | 178 | 204 | 235 | 286 | 286 | 340 | 340 | |
| c | 170 | 170 | 240 | 240 | 335 | 385 | 385 | 385 | |
| d | 30 | 35 | 30 | 42 | 52 | 52 | 60 | 60 | |
| E | 79 | 87 | 112 | 133 | 162 | 162 | 162 | 162 | |
| Hmin | 245 | 285 | 335 | 365 | 448 | 448 | 600 | 600 | |
| g | 97 | 117 | 124 | 159 | 178 | 178 | 178 | 178 | |
| H | 77 | 80 | 84 | 90 | 97 | 97 | 97 | 97 | |
