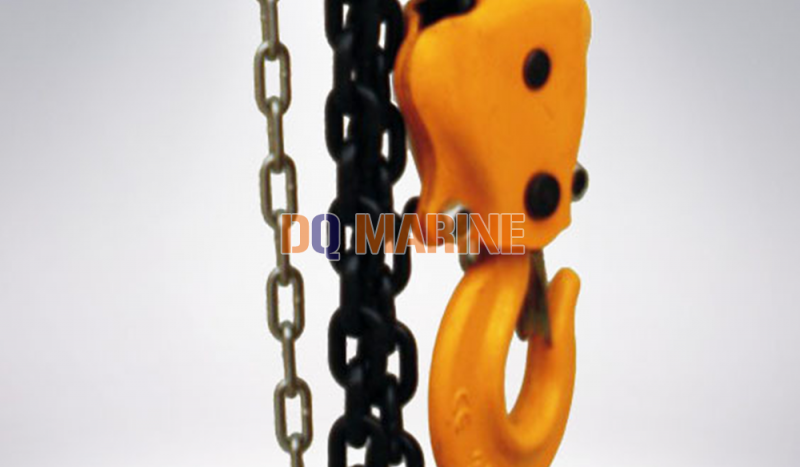

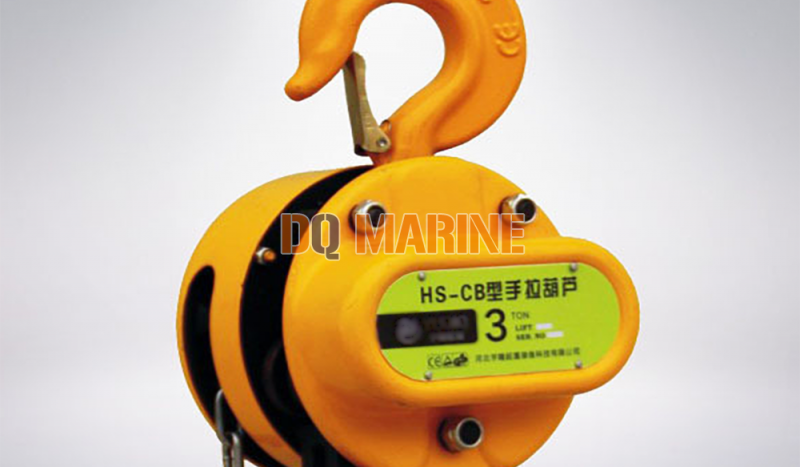

HS-CB Chain Block
HS-CBChain Block Introduction
Double pawls braking system.
Reasonable design structure, reliable quality.
The hooks with stamped and heat treatment have high strength and resistance.
G80 alloy load chain and galvanized hand chain as the standard configuration.
Product Details
The parameter table
| Model | HS-CB0.5 | HS-CB1 | HS-CB1.5 | HS-CB2 | HS-CB3 | HS-CB5 | HS-CB10 | HS-CB20 | |
| Rated Load (T) | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | |
| Lifting Height (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | |
| Test Load (T) | 0.75 | 1.5 | 2.25 | 3 | 4.5 | 7.5 | 15 | 30 | |
| Min Distance Between Two Hooks(mm) | 280 | 300 | 360 | 380 | 470 | 600 | 730 | 1000 | |
| Effort Require To Lift Max Load (N) | 210 | 340 | 390 | 340 | 390 | 420 | 450 | 450 | |
| Dia of Load Chain (mm) | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 | |
| Load Chain Number | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Dimensions (mm) | A | 142 | 142 | 178 | 142 | 178 | 210 | 338 | 580 |
| B | 128 | 128 | 145 | 128 | 145 | 167 | 167 | 195 | |
| C | 23 | 23 | 29.5 | 29.5 | 34 | 44 | 57 | 78 | |
| D | 35 | 35 | 40.5 | 40.5 | 46.5 | 62 | 81 | 106 | |
| Net Weight (kg) | 9.8 | 9.8 | 15 | 13 | 21 | 33.5 | 65 | 150 | |
| Extra Weight Per Meter (kg) | 1.8 | 1.8 | 2.4 | 2.7 | 3.8 | 5.3 | 9.8 | 19.6 | |
| Package Size (cm) | 25*18*17 | 25*17*16 | 26*23*17 | 27*20*16 | 32*23*17 | 41*30*21 | 62*50*27 | 80*70*36 | |
