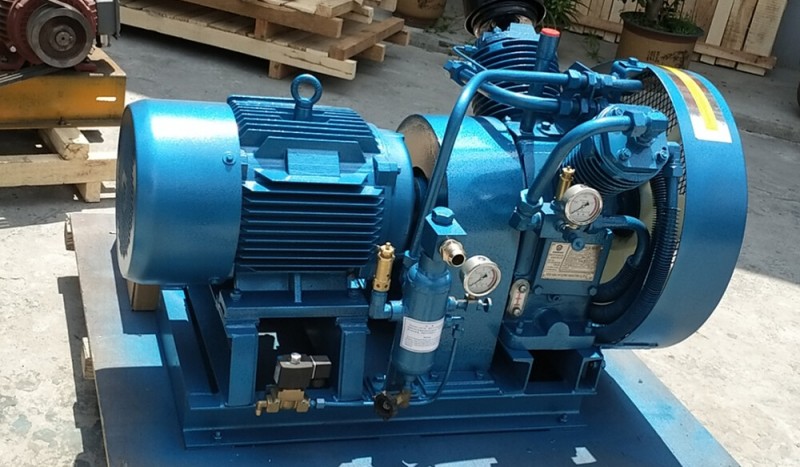

CVF-43 Directly Connect Marine Air Compressor
China CVF-43 Directly Connect Marine Air Compressor:
Model: CVF-43
Delivery pressure: 3.0Mpa
Capacity: 30m3/h,36m3/h,44m3/h.
Bore diameter: 110/50mm
Stroke: 68mm
Number of Cylinder: 2
Cooling Method: air cooled
Second stage compression
Piston type
| Model | Type | Displacement capacity | Rated pressure | Rotate speed | Motor power | Driving method | Overall size |
| m3/h | Mpa | r/min | KW | mm | |||
| CVF-43 | Vertical type. Air cooling. Second stage compression. Piston type. | 30 | 3 | 1200 | 7.5 | Belt type or Direct connection type. | 1400x700x920 |
