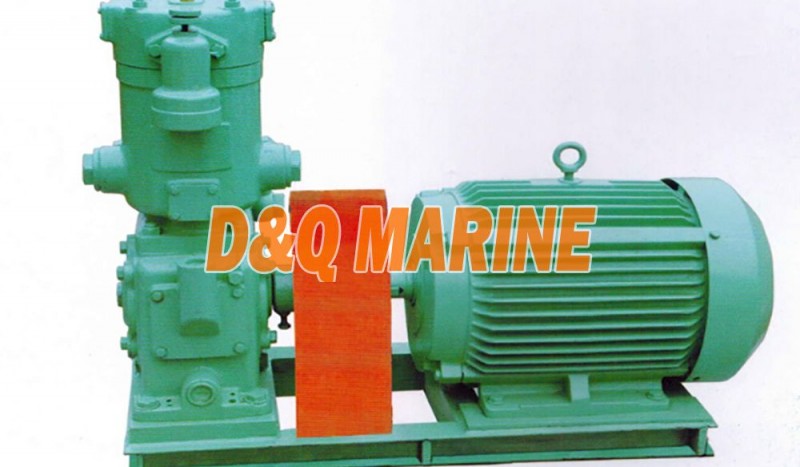

SHC-55A Marine Air compressor
Main Technical Parameter
| Model | Type | Displacement capacity | Specified Pressure | Rotating Speed | Motor Power | Weight | Overrall Size(L*W*H) |
| m3/h | Mpa | r/min | KW | Kg | mm | ||
| SHC-55A | Vertical type water cooled two stage compression piston type | 32 | 3.0 | 730 | 11 | 310 | 1200*680*1050 |
| 40☆ | 870 | 15 | 330 | ||||
| 50 | 960 | 15 | 330 | ||||
| Remarks: ☆ On behalf of 440V Suitable for 0.5 -1.0 cube air bottle | |||||||
