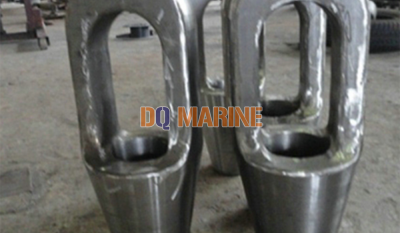

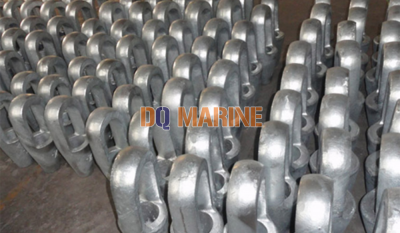

Close Wire Rope Link:
Close Wire Rope Link Introduction
Wire rope diameter from 10.5mm to 63mm.
Product Details
The parameter table
| TYPE | Wire Rope Diamter(mm) | Dimensions (mm) | |||||
| L | L1 | B | C | D | H | ||
| CZTH2551 | 10.5 | 144 | 63 | 32 | 15 | 14 | 18 |
| CZTH2552 | 12 | 159 | 69 | 34 | 17 | 16 | 20 |
| CZTH2553 | 14 | 176 | 76 | 37 | 19 | 18 | 22 |
| CZTH2554 | 16 | 193 | 84 | 40 | 21 | 20 | 24 |
| CZTH2555 | 18 | 210 | 91 | 43 | 24 | 23 | 27 |
| CZTH2556 | 20 | 227 | 98 | 47 | 26 | 25 | 30 |
| CZTH2557 | 22.5 | 245 | 105 | 52 | 29 | 30 | 33 |
| CZTH2558 | 24 | 262 | 112 | 56 | 31 | 32 | 36 |
| CZTH2559 | 25 | 281 | 120 | 60 | 34 | 33 | 39 |
| CZTH2560 | 28 | 298 | 127 | 65 | 36 | 36 | 41 |
| CZTH2561 | 30 | 316 | 134 | 68 | 39 | 38 | 44 |
| CZTH2562 | 31.5 | 335 | 142 | 72 | 42 | 40 | 47 |
| CZTH2563 | 33.5 | 353 | 150 | 75 | 44 | 42 | 50 |
| CZTH2564 | 36 | 373 | 158 | 80 | 47 | 44 | 53 |
| CZTH2565 | 37.5 | 392 | 168 | 84 | 47 | 47 | 56 |
| CZTH2566 | 40 | 413 | 175 | 88 | 52 | 49 | 59 |
| CZTH2567 | 42 | 434 | 184 | 92 | 54 | 52 | 61 |
| CZTH2568 | 45 | 474 | 200 | 101 | 60 | 54 | 67 |
| CZTH2569 | 47.5 | 494 | 209 | 104 | 62 | 57 | 70 |
| CZTH2570 | 50 | 516 | 218 | 109 | 65 | 60 | 73 |
| CZTH2571 | 53 | 536 | 227 | 113 | 67 | 63 | 76 |
| CZTH2572 | 56 | 567 | 240 | 119 | 71 | 66 | 80 |
| CZTH2573 | 60 | 619 | 262 | 129 | 78 | 70 | 87 |
| CZTH2574 | 63 | 641 | 271 | 133 | 81 | 74 | 90 |
