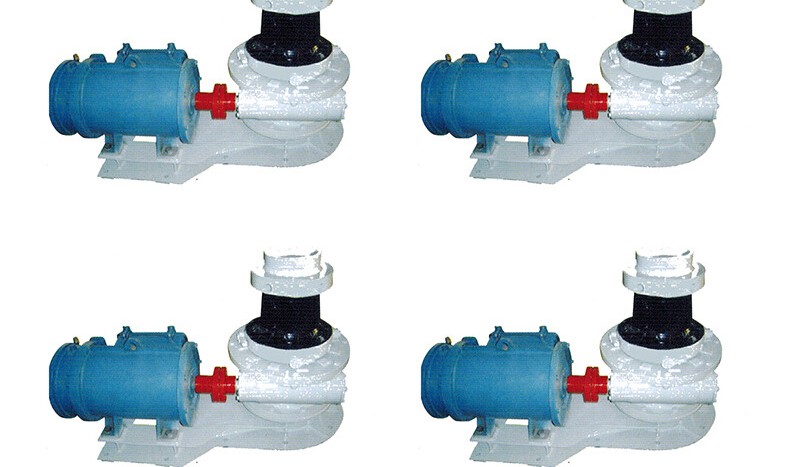

10KN Hand Capstan
5-30KN Hand Capstan
The warping capstans are used in inland river boats and coustal ships for lashing rope,which can be operated by manpower,motor or hydraulic system.
Drawing
Technical specifications
|
Specification and names |
Diagram NO. |
Mooring Load (KN) |
Nominal Speed (m/min) |
Steel Cable (mm) |
Remarks |
| 5KN Hand Capstan | 221Q45-12-00 | 5 | φ11 | ||
| 10KN Hand Capstan | V221CS14-00 | 10 | φ15 | ||
| 15KN Hand Capstan | 221Q45-15-00 | 15 | φ17 | ||
| 30KN Hand Capstan | 221WTJ-1-00 | 30 | φ17.5 |
