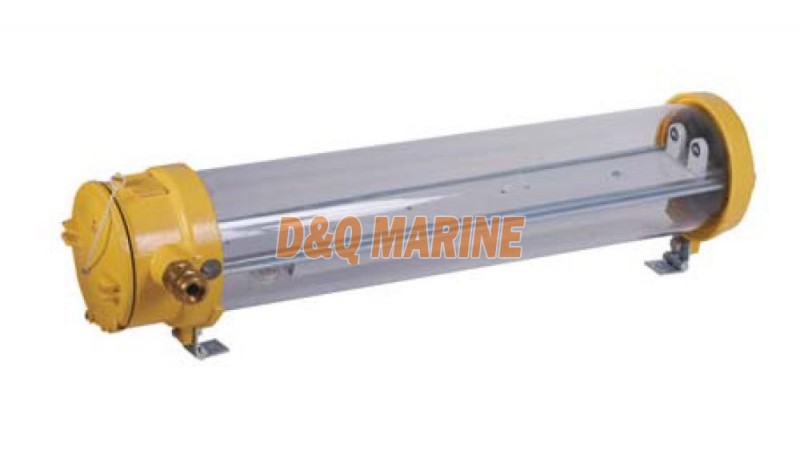

CFY20/30/40 Explosion Proof Light
The scope of application
Applied to illumination for ship, oil exploit platform, chemical and explosive gas atmospheres zone 1 ,zone 2.flammable gases, vapors levelⅡA,ⅡB,ⅡC level, Temperature class T1～T6 dangerous places.
Products feature
1. The shell adopts high quality cast brass, the light body adopts seal structure, has good waterproof performance and anti-corrosion performance.
2. Adopt tubular fluorescent light source, mounting type is hanging, it is convenient to replace the fluorescent tube.
4.Cable outside diameter is Φ10～Φ12mm.
Products certification
1. This lamp has been inspected and certified by China National Lighting Fitting Quality Supervision Testing center and National Supervision and Examination Center for Explosion protected and Safety of Luminaire (NECESL).
2. Approved by type approval of CCS (China Classification Society), type approval of BV (France Classification Society).
Installation
CFY20/30/40 Explosion Proof Light Specification
| Type | CFY20-2/1 | CFY30-2/1 | CFY40-2/1 |
| L1(mm) | 776 | 1082 | 1385 |
| L2(mm) | 561 | 867 | 1170 |
| Explosion Proof Mark | Ex de‖CT6Gb | ||
| Power(W) | 20WX2/1 | 30WX2/1 | 40WX2/1 |
| Voltage(V) | 220/110/24 | ||
| Lamp Holder | G13 | ||
| Protection Class | IP56 | ||
| Weight( Kg) | 13 | 15.1 | 17.3 |
