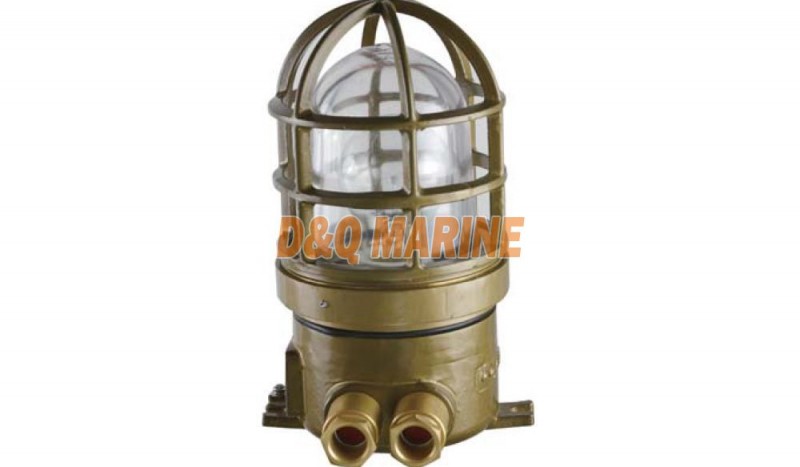

CFD1 Explosion Proof Light
The scope of application
Suitable for illumination for possible accumulation of explosive gas mixtures of cabin or outdoor spaces.
Products feature
1. The shell adopts good quality cast brass, lampshade adopts hard borax glass, with brass protective guard.
2. The lamp body adopts seal structure with high waterproof and corrosion resistance.
3.The lamps can work normally under the temperature -20℃ ～+40℃.
4.Cable outside diameter is Φ10～Φ12mm.
Adopt standard
1. Conform to GB3836; GB12045 standard.
2. Conform to RULES FOR CLASSIFICATION OF SEA-GOING STEEL SHIPS.
Installation
CFD1 Explosion Proof Light Specification
| Type | CFD1-1 | CFD1-2 | CFD1-3 |
| Explosion Proof Mark | Ex d‖CT4 | ||
| Voltage(V) | 220V/24V | ||
| Light Source | Incandescent Lamp | ||
| Power(W) | 60 | ||
| Lamp Holder | E27 | ||
| Protection Class | IP66 | ||
| Weight( Kg) | 4 | ||
