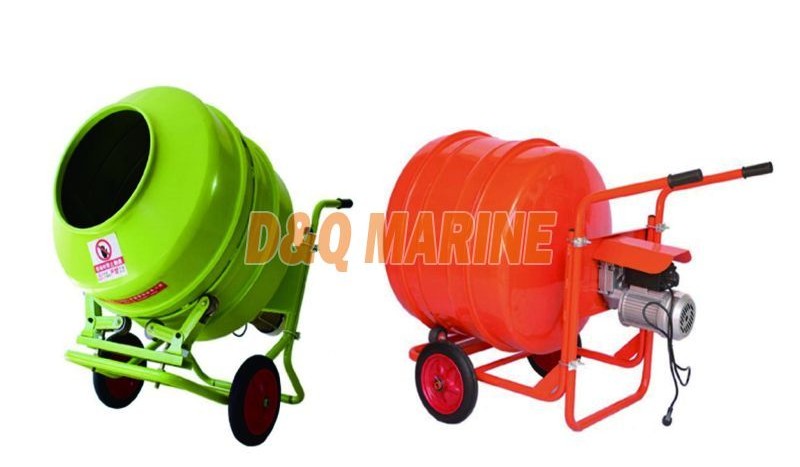

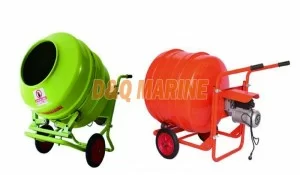

Mini Concrete Mixers
China Mini Concrete Mixers:
Mini Concrete Mixers
| Model | Motor | Motor(R/min) | Voltage/HZ | Drum Capacity | Drum Rotation | Drum Dia | Drum Upper thickness | Drum Bottom thickness | Package | N.W/G.W |
| FG-100L | 450W | 1450 | 230V/50HZ 120V/60HZ | 100L | 28-32 | 330 | 12 | 15 | 735*580*430 | 42/44 |
| FG-120L | 450W | 120L | 28-32 | 330 | 12 | 15 | 735*580*432 | 45/48 | ||
| FG-125L | 550W | 125L | 24-29 | 380 | 12 | 20 | 835*690*390 | 51/56 | ||
| FG-140L | 550W | 140L | 24-29 | 380 | 12 | 20 | 835*690*430 | 53/58 | ||
| FG-160L | 650W | 160L | 24-29 | 380 | 15 | 20 | 835*690*470 | 56/61 | ||
| FG-180L | 800W | 180L | 24-29 | 380 | 15 | 20 | 835*690*480 | 61/66 | ||
| FG-200L | 800W | 200L | 24-29 | 380 | 15 | 20 | 835*690*500 | 62/67 | ||
| FG-220L | 1000W | 2800 | 220L | 24-26 | 380 | 15 | 20 | 970*760*460 | 85/90 | |
| FG-240L | 1000W | 240L | 24-26 | 380 | 15 | 20 | 970*760*460 | 86/91 | ||
| FG-260L | 1000W | 260L | 24-26 | 380 | 15 | 20 | 970*760*500 | 87/92 |
