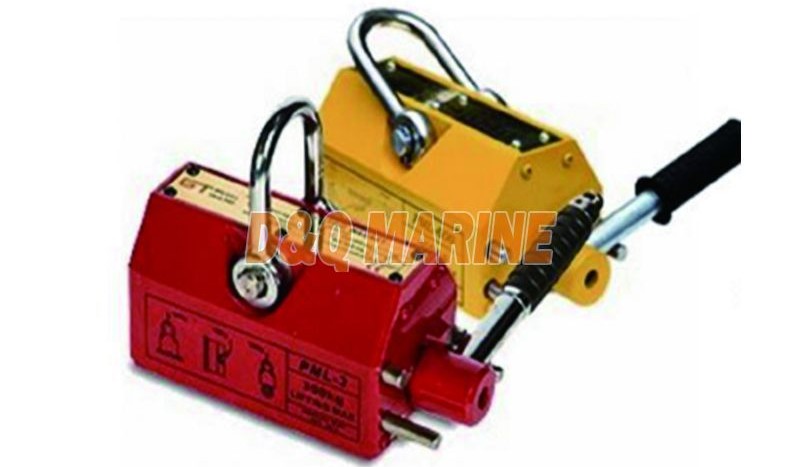

Magnetic Lifter
China Magnetic Lifter:
Magnetic Lifter

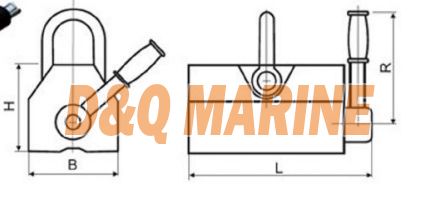

| Model No. | Rated Lifting Capacity | MAX Breakaway Force | Max Operating Temp | Dimensions(mm) | Net Weight | Minimum PlateThicknessRequires | |||
| (Kg) | (Kg) | (°C) | L | B | H | R | (Kg) | (mm) | |
| FG-1 | 100 | 300 | 80 | 95 | 65 | 75 | 145 | 3 | >4 |
| FG-2 | 200 | 200 | 80 | 163 | 91 | 90 | 160 | 9 | >6 |
| FG-3 | 300 | 900 | 80 | 162 | 92 | 91 | 180 | 9 | >8 |
| FG-5 | 500 | 1500 | 80 | 233 | 122 | 118 | 220 | 23 | >12 |
| FG-6 | 600 | 1800 | 80 | 233 | 120 | 120 | 220 | 23 | >15 |
| FG-10 | 1000 | 3000 | 80 | 260 | 175 | 165 | 285 | 50 | >25 |
| FG-20 | 2000 | 6000 | 80 | 386 | 233 | 202 | 465 | 125 | >40 |
| FG-30 | 3000 | 9000 | 80 | 443 | 226 | 217 | 565 | 225 | >60 |
| FG-50 | 5000 | 10500 | 80 | 443 | 226 | 217 | 635 | 250 | >60 |
