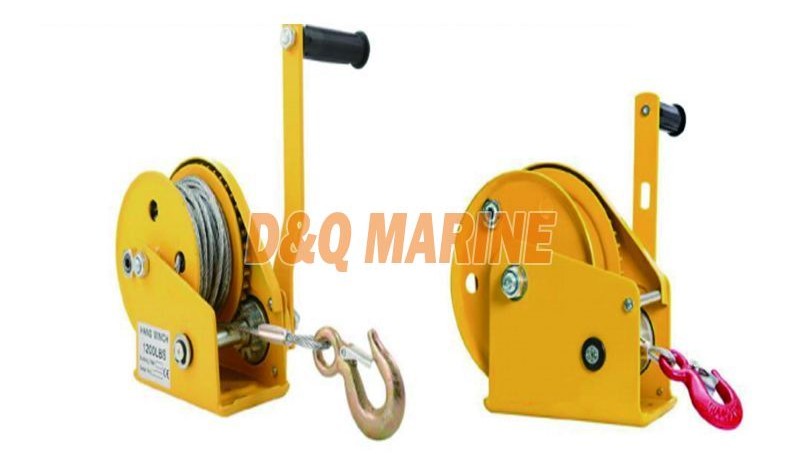

Hand Winch
China Hand Winch:
Hand Winch
| PRODUCT MODEL | 1200LB | 1800LB | 2600LB | |
| CAPACITY/LB | 1200 | 1800 | 2600 | |
| LBCAPACITY/IKN | 8 | 12 | 17.5 | |
| SPEED RATIO | 4:1 | 4:1 | 4:1 | |
| HAND POWER/N: | 180 | 190 | 190 | |
| MAIN DIMENSIONS/MM: | A | φ48 | φ60 | φ75 |
| B | φ134 | φ180 | φ180 | |
| C | 51 | 60 | 63 | |
| D | 157 | 190 | 209 | |
| E | φ27 | φ27 | φ27 | |
| F | 273 | 288 | 307 | |
| G | 110 | 110 | 110 | |
| H | 156 | 203 | 216 | |
| J | 136 | 195 | 220 | |
| R | 250 | 280 | 280 | |
| NET WEIGHT(KG) | 4 | 8 | 10.3 | |
