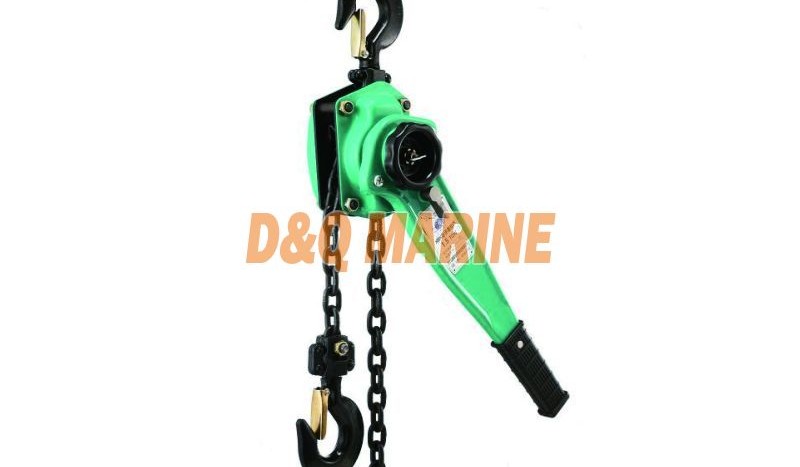

HSH Chain Handle Hoist
China HSH Chain Handle Hoist:
HSH Chain Handle Hoist
Advanced structure, safe and reliable use, durable and long-lasting; High overall efficiency, simple and comfortable operation; Small size, light weight, easy to carry, all made of structural steel; Premium alloy chain; All are driven by gear rotation; There are bearings or shaft sleeves at the rotation points of gears and shafts; The surface of the product has undergone spray coating treatment.
| MODEL | 0.75T | 1T | 1.5T | 2T | 3T | 6T | 9T | |
| LIFTING CAPACITY(T) | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 | |
| LIFTING HEIGHT(M) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| TESTING LOAD(KN) | 11 | 15 | 22.5 | 30 | 37.5 | 75 | 112.5 | |
| HAND PULLING FORCE(N) | 145 | 150 | 200 | 220 | 280 | 310 | 320 | |
| CHAIN DIAMETER(mm) | 6 | 6 | 7.1 | 8 | 10 | 10 | 10 | |
| NUMBER OF LIFTING CHAINS | 1 | 1 | 1 | 1 | 1 | 2 | 3 | |
| WEIGHT INCREASE PER METER(KG) | 0.8 | 0.8 | 1.1 | 1.4 | 2.2 | 4.4 | 6.6 | |
| NET WEIGHT(KG) | 7 | 7 | 10 | 12 | 18 | 28.5 | 45 | |
