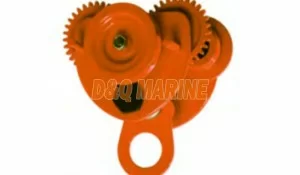

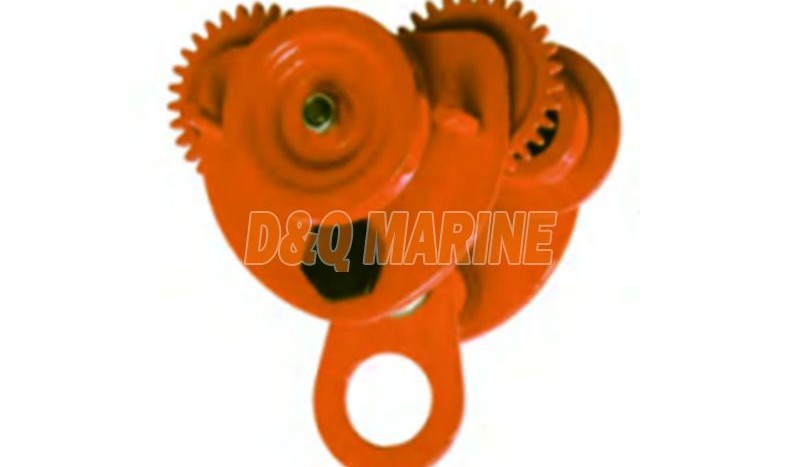

GCL Series Geared Trolleys
China GCL Series Geared Trolleys:
GCL Series Geared Trolleys

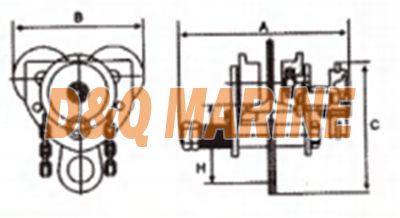

| Model | Capaity(ton) | Proof load (ton) | Minimun revoing radus(mm) | Dimensions(mm) | Fits Beam(mm) | N.W.(kg) | ||||
| A | B | C | H | F | ||||||
| GCL-1 | 1 | 1.25 | 1 | 242 | 210 | 211 | 115 | ≈3 | 40-125 | 9 |
| GCL-2 | 2 | 2.25 | 1.1 | 280 | 240 | 236 | 130 | ≈3 | 55-135 | 12 |
| GCL-3 | 3 | 3.25 | 1.3 | 300 | 280 | 295 | 164 | ≈3 | 55-155 | 18 |
| GCL-5 | 5 | 5.25 | 1.4 | 316 | 320 | 334 | 177 | ≈3 | 70-165 | 31 |
