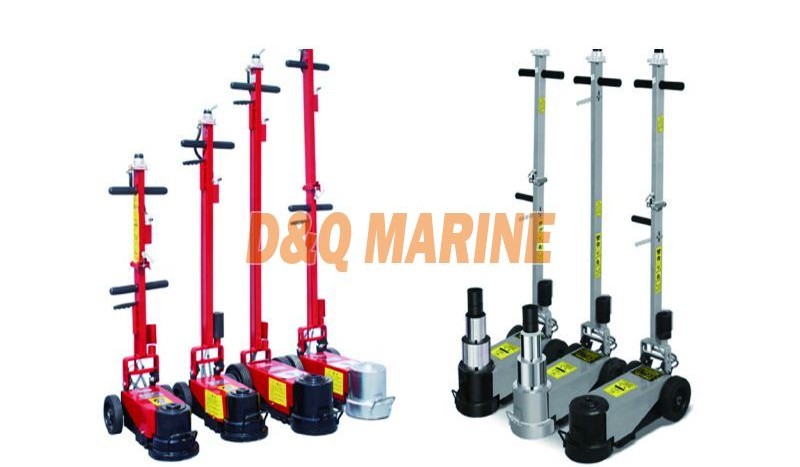

Air Jack

Category: Chain Block

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote

We can supply according to your requirement.

Air Jack

Model number	FG50T-2	FG80T-2(National standard type)	FG80T (Heavy type)	FG80T-2 (Unfold type)	FG80T-2(Fold type)	FG80T-2 (Lowtype)
Lifting capacity	50T/25T	80T/40T	80T/40T	80T/40T	80T/40T	80T/40T
Air pressure	0.8-1.2 mpa	0.8-1.2 mpa	0.8-1.2 mpa	0.8-1.2 mpa	0.8-1.2 mpa	0.8-1.2 mpa
Min height	165mm	195mm	225mm	195mm	195mm	165mm
Lifting height	320mm	320mm	460mm	370mm	370mm	285mm
Stroke	155mm			175mm		120mm
Extension height		60mm/30mm	60mm/30mm	60mm/30mm	60mm/30mm
N.W	40kg	40kg	75kg	60kg	60kg	50kg

Model number	FG80T-2(Extension type)	FG100T-2 (Heavy type)	FG100T-2(Heavy type)	FG100T-2(Heavy type)	FG120T	FG150T
Lifting capacity	80T/40T	100T/50T	100T/50T	100T/50T	120T/60T	150T/75T
Air pressure	0.8-1.2 mpa	0.8-1.2 mpa	0.8-1.2 mpa	0.8-1.2 mpa	0.8-1.2 mpa	0.8-1.2 mpa
Min height	225mm	205mm	205mm	205mm	205mm	205mm
Lifting height	460mm	400mm	400mm	400mm	400mm	400mm
Stroke	235mm	195mm			195mm	195mm
Extension height	60mm/ 30mm	60mm /30mm	60mm / 30mm	60mm / 30mm	60mm/30mm	60mm/30mm
N.W	68kg	70kg	80kg	80kg	80kg	100kg
