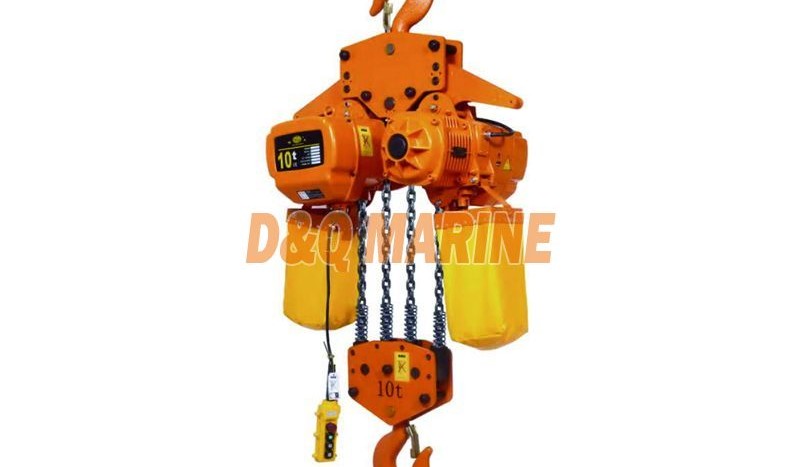

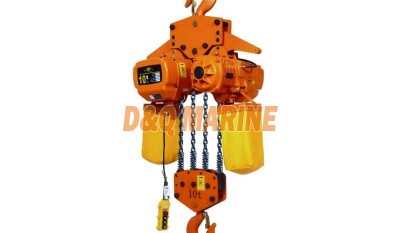

10－04/15－06/20－08/25－10 HHBB Series Kito Electric Chain Hoist
China 10－04/15－06/20－08/25－10 HHBB Series Kito Electric Chain Hoist:
10－04/15－06/20－08/25－10 HHBB Series Kito Electric Chain Hoist
Technical Parameters：
| Type | Capacity(Ton) | Lifting Height (m) | Lifting Speed (m/min) | Lifting Moter | Traveing speed(m/min) | Operating Moter | ||||||||
| Power(kw) | Rotation speed(r/min) | Phases | voltage(v) | Frequency(Hz) | Power(kw) | Rotation speed(r/min) | Phases | voltage(v) | Frequency(Hz) | |||||
| HHBB10-04 | 10 | 3/9 | 2.8 | 3x2 | 1440 | 3 | 220-440 | 50/60 | 10/20 | 0.75x2 | 1440 | 3 | 220-440 | 50/60 |
| HHBB15－06 | 15 | 3/9 | 1.8 | 3x2 | 1440 | 3 | 220-440 | 50/60 | 10/20 | 0.75x2 | 1440 | 3 | 220-440 | 50/60 |
| HHBB20－8 | 20 | 3/9 | 1.4 | 3x2 | 1440 | 3 | 220-440 | 50/60 | 10/20 | 0.75x2 | 1440 | 3 | 220-440 | 50/60 |
| HHBB25－10 | 25 | 3/9 | 1.1 | 3x2 | 1440 | 3 | 220-440 | 50/60 | 10/20 | 0.75x2 | 1440 | 3 | 220-440 | 50/60 |
Product Size:
| Type | Capacity | H | A | B | D | E | F | K | L | N | I-BEAM | Chain |
| HHBB10－04 | 10 | 880 | 630 | 315 | 1620 | 365 | 365 | Φ83 | 68 | 55 | 150-220 | Φ11.2 |
| HHBB15－06 | 15 | 1100 | 630 | 315 | 1840 | 365 | 365 | Φ115 | 90 | 72 | 150-220 | Φ11.2 |
| HHBB20－08 | 20 | 1180 | 630 | 315 | 2050 | 365 | 365 | Φ115 | 90 | 72 | 150-220 | Φ11.2 |
| HHBB25－10 | 25 | 1280 | 630 | 315 | 2265 | 365 | 365 | Φ142 | 110 | 85 | 150-220 | Φ11.2 |
