10-04/15-06/20-08/25-10/32-12 HHBB Series Hoist
China 10-04/15-06/20-08/25-10/32-12 HHBB Series Hoist:

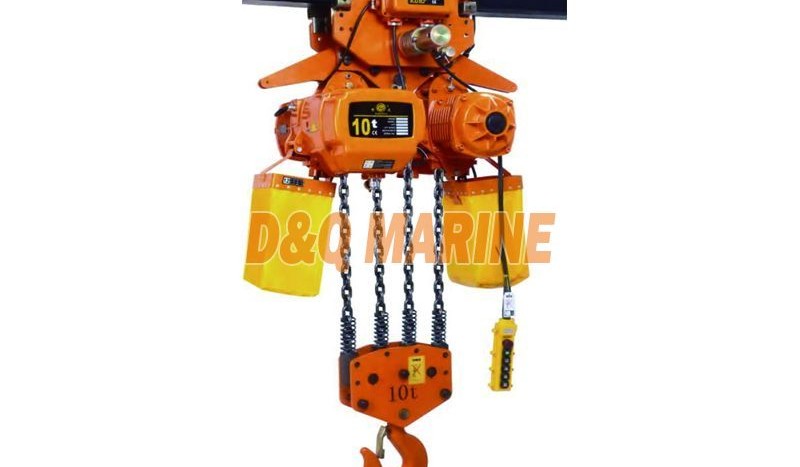

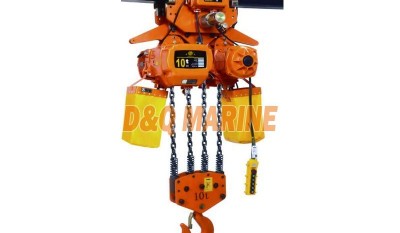

10-04/15-06/20-08/25-10/32-12 HHBB Series Hoist
Technical Parameters:
| Type | Capacity(Ton) | Lifting Height (m) | Lifting Speed (m/min) | Lifting Moter | Traveing speed(m/min) | Operating Moter | ||||||||
| Power(kw) | Rotation speed(r/min) | Phases | voltage(v) | Frequency(Hz) | Power(kw) | Rotation speed(r/min) | Phases | voltage(v) | Frequency(Hz) | |||||
| HHBB10－04 | 10 | 3/9 | 2.8 | 3x2 | 1440 | 3 | 220-440 | 50/60 | 10/20 | 0.75x2 | 1440 | 3 | 220-440 | 50/60 |
| HHBB15－06 | 15 | 3/9 | 1.8 | 3x2 | 1440 | 3 | 220-440 | 50/60 | 10/20 | 0.75x2 | 1440 | 3 | 220-440 | 50/60 |
| HHBB20－08 | 20 | 3/9 | 1.4 | 3x2 | 1440 | 3 | 220-440 | 50/60 | 10/20 | 0.75x2 | 1440 | 3 | 220-440 | 50/60 |
| HHBB25－10 | 25 | 3/9 | 1.1 | 3x2 | 1440 | 3 | 220-440 | 50/60 | 10/20 | 0.75x2 | 1440 | 3 | 220-440 | 50/60 |
| HHBB32－12 | 32 | 3/9 | 0.9 | 3x2 | 1440 | 3 | 220-440 | 50/60 | 10/20 | 0.75x2 | 1440 | 3 | 220-440 | 50/60 |

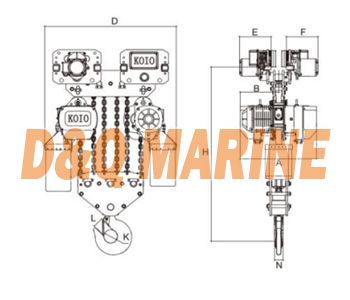

Product Size:
| Type | Capacity | H | A | B | D | E | F | K | L | N | I-BEAM | Chain |
| HHBB10－04 | 10 | 1200 | 630 | 315 | 940 | 256 | 265 | Φ83 | 68 | 55 | 150-220 | Φ11.2 |
| HHBB15－06 | 15 | 1360 | 630 | 315 | 1120 | 256 | 265 | Φ115 | 90 | 72 | 150-220 | Φ11.2 |
| HHBB20－08 | 20 | 1470 | 630 | 315 | 1310 | 256 | 265 | Φ115 | 90 | 72 | 150-220 | Φ11.2 |
| HHBB25－10 | 25 | 1500 | 630 | 315 | 1500 | 256 | 265 | Φ142 | 110 | 85 | 150-220 | Φ11.2 |
| HHBB32－12 | 32 | 1640 | 630 | 315 | 1720 | 256 | 265 | Φ142 | 110 | 85 | 150-220 | Φ11.2 |
