0.5-01/01-01/02-01/03-01 HHBB Series Hoist Kito Electric Chain Hoist
China 0.5-01/01-01/02-01/03-01 HHBB Series Hoist Kito Electric Chain Hoist:

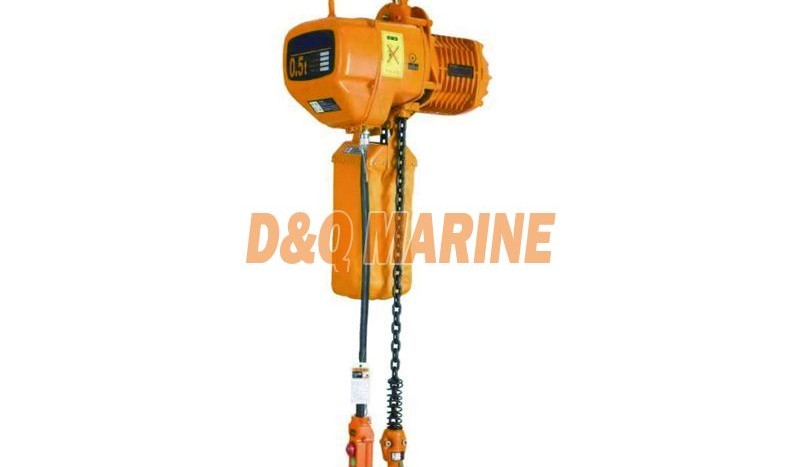

0.5-01/01-01/02-01/03-01 HHBB Series Hoist Kito Electric Chain Hoist
The Kito electric chain hoist,engineered in japan,combines precision engineering with industrial robustness. Equipped with a dual-speed frequency control system and aerospace-grade alloy chains,it handles lodes from 125kg to 20 tons with lifting speeds up to14.1m/min (model_dependent) and positioning accuracy within+IMMM.Ideal for nuclear facilities, offshore rigs,and precision manufacturing.
Technical Parameters；
| Type | Capacity(Ton) | Lifting Height (m) | Lifting Speed (m/min) | Lifting Moter | ||||
| Power(kw) | Rotation speed(r/min) | Phases | voltage(v) | Frequency(Hz) | ||||
| HHBB0.5－01 | 0.5 | 3/9 | 7.2 | 1.1 | 1440 | 3 | 220-440 | 50/60 |
| HHBB01－02 | 1 | 3/9 | 3.6 | 1.1 | 1440 | 3 | 220-440 | 50/60 |
| HHBB01－01 | 1 | 3/9 | 6.8 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| HHBB02－02 | 2 | 3/9 | 3.4 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| HHBB02－01 | 2 | 3/9 | 6.6 | 3 | 1440 | 3 | 220-440 | 50/60 |
| HHBB03－03 | 3 | 3/9 | 2.2 | 1.5 | 1440 | 3 | 220-440 | 50/60 |
| HHBB03－02 | 3 | 3/9 | 3.3 | 3 | 1440 | 3 | 220-440 | 50/60 |
| HHBB03－01 | 3 | 3/9 | 5.6 | 3 | 1440 | 3 | 220-440 | 50/60 |
| HHBB05－02 | 5 | 3/9 | 2.8 | 3 | 1440 | 3 | 220-440 | 50/60 |

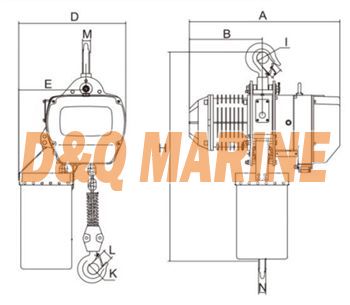

Product Size:
| Type | Capacity | H | A | B | D | E | I | J | K | L | N | M |
| HHBB0.5－01 | 0.5 | 550 | 460 | 230 | 240 | 160 | Φ32 | 25 | Φ32 | 25 | 17 | 17 |
| HHBB01－02 | 1 | 670 | 460 | 230 | 240 | 205 | Φ40 | 31 | Φ40 | 31 | 24 | 24 |
| HHBB01－01 | 1 | 600 | 520 | 260 | 310 | 205 | Φ40 | 31 | Φ40 | 31 | 24 | 24 |
| HHBB02－02 | 2 | 750 | 520 | 260 | 310 | 230 | Φ49 | 35 | Φ49 | 35 | 30 | 30 |
| HHBB02－01 | 2 | 800 | 620 | 300 | 440 | 265 | Φ49 | 35 | Φ49 | 35 | 30 | 30 |
| HHBB03－03 | 3 | 1000 | 420 | 260 | 310 | 280 | Φ59 | 42 | Φ59 | 42 | 35 | 35 |
| HHBB03－02 | 3 | 950 | 620 | 300 | 440 | 320 | Φ59 | 42 | Φ59 | 42 | 35 | 35 |
| HHBB03－01 | 3 | 845 | 620 | 300 | 440 | 265 | Φ59 | 42 | Φ59 | 42 | 35 | 35 |
| HHBB05－02 | 5 | 1030 | 620 | 300 | 440 | 325 | Φ60 | 45 | Φ60 | 45 | 43 | 43 |
