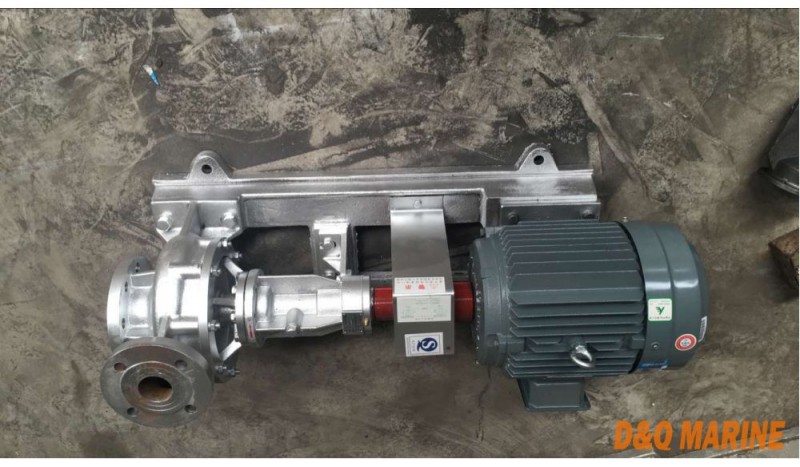

WRY series hot oil pump
WRY series hot oil pump
WRY series hot oil has been widely used in the heating system in China.
It is widely used in Oil, Rubber, Resin, Textile, Printing, Construction.
The transport medium's temperature should not exceed 350C.
Technical parameter:
| Model | Capacity | Head | Speed | Power | Efficiency | NPSH | |
| WRY | m3/h | m | rpm | Shaft | Motor | % | m |
| 26-20-100 | 4.5 | 15 | 2825 | 0.45 | 0.75 | 40 | 0.8 |
| 50-32-150 | 8 | 22 | 2840 | 1.1 | 1.5 | 42 | 1.6 |
| 50-32-160 | 10 | 25 | 2840 | 1.6 | 2.2 | 42 | 1.8 |
| 65-40-160 | 12.5 | 25 | 2880 | 1.9 | 3 | 45 | 2.2 |
| 50-50-170 | 12.5 | 32 | 2890 | 2.4 | 4 | 45 | 2.5 |
| 80-50-180 | 32 | 32 | 2900 | 5.3 | 5.5 | 52 | 2.7 |
| 80-50-170 | 40 | 25 | 2900 | 5.2 | 5.5 | 52 | 2.7 |
| 80-50-190 | 40 | 40 | 2900 | 6.9 | 7.5 | 63 | 3.1 |
| 80-50-170 | 60 | 20 | 2900 | 6.7 | 7.5 | 62 | 3.1 |
| 100-65-190 | 60 | 38 | 2930 | 9.8 | 11 | 63 | 3.9 |
| 100-65-200 | 80 | 40 | 2930 | 13.6 | 15 | 64 | 3.5 |
| 100-65-220 | 58 | 50 | 2930 | 11.9 | 15 | 66 | 3.5 |
| 100-65-230 | 100 | 55 | 2940 | 21.4 | 22 | 67.5 | 3.6 |
| 125-100-190 | 155 | 30 | 2940 | 20 | 22 | 72 | 3.6 |
| 100-65-240 | 100 | 70 | 2950 | 28.3 | 30 | 68 | 4.1 |
| 100-65-257 | 100 | 80 | 2950 | 32.5 | 37 | 67 | 3.6 |
| 125-100-220 | 160 | 45 | 2950 | 25.5 | 37 | 75 | 3.6 |
