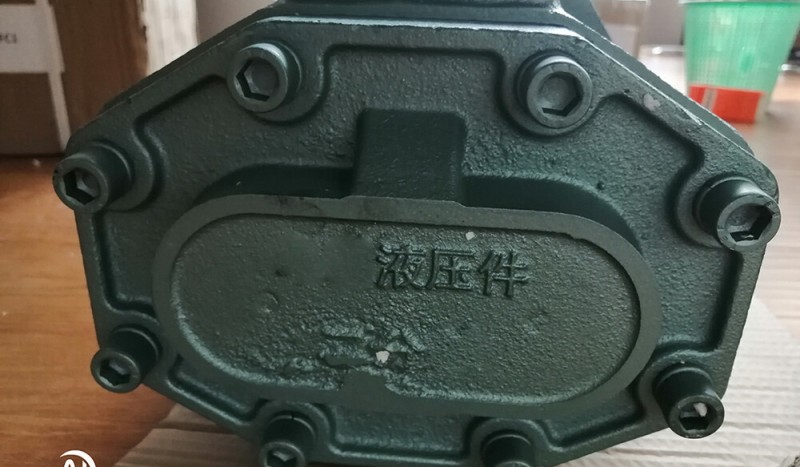

CB-B Type Helical Gear Large Displacement Pump
Description:
CB-B type helical gear large displacement pump is the power element in the hydraulic system. The pump adopts high-precision gears and high-strength cast iron shell, which makes it have the advantages of simple structure, large displacement, high efficiency, low noise, and reliable use. It is widely used in hydraulic systems such as oil fields, mining machinery, and agricultural machinery.
Size:
Technical data:
| Model | Capacity | Discharge Pressure MPa | Speed r/min | Power KW | Volumetric efficiency % | Weight kg |
| CB-B160 | 160 | 2.5 | 1450 | 11.37 | 90 | 30 |
| CB-B200 | 200 | 14.22 | 93 | 34 | ||
| CB-B250 | 250 | 17.76 | 94 | 36 | ||
| CB-B315 | 315 | 22.39 | 94 | 38.5 | ||
| CB-B350 | 350 | 24.88 | 95 | 40 | ||
| CB-B400 | 400 | 28.43 | 95 | 42.5 | ||
| CB-B500 | 500 | 31.98 | 93 | 42 | ||
| CB-B550 | 550 | 35.54 | 93 | 43 | ||
| CB-B600 | 600 | 40 | 93 | 44 | ||
| CB-B700 | 700 | 49.75 | 93 | 57 |
