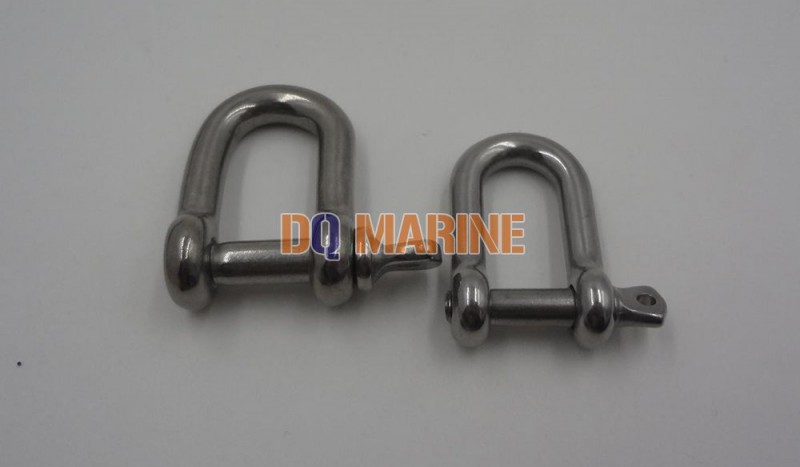

Stainless Steel US Type Dee Shackle
Stainless Steel US Type Dee Shackle Introduction
The material: AISI304/AISI316
The shackle pin is bigger than shackle body, with heavier load capacity.
The Product Detail
| Size (M) | C | W | H | D | WLL | WT |
| inch | inch | inch | inch | inch | ton | lbs |
| 3/16 | 0.19 | 0.38 | 0.75 | 0.56 | 1/3 | 0.05 |
| 1/4 | 0.25 | 0.47 | 0.88 | 0.61 | 1/2 | 0.11 |
| 5/16 | 0.31 | 0.53 | 1.03 | 0.75 | 3/4 | 0.17 |
| 3/8 | 0.38 | 0.66 | 1.25 | 0.91 | 1 | 0.24 |
| 7/16 | 0.44 | 0.75 | 1.44 | 1.05 | 1-1/2 | 0.4 |
| 1/2 | 0.5 | 0.81 | 1.63 | 1.19 | 2 | 0.59 |
| 5/8 | 0.62 | 1.06 | 2 | 1.5 | 3-1/4 | 1.21 |
| 3/4 | 0.81 | 1.25 | 2.38 | 1.81 | 4-3/4 | 2.25 |
| 7/8 | 0.97 | 1.44 | 2.81 | 2.09 | 6-1/2 | 3.16 |
| 1 | 1 | 1.69 | 3.19 | 2.38 | 8-1/2 | 4.75 |
| 1 1/8 | 1.25 | 1.81 | 3.58 | 2.69 | 9-1/2 | 6.75 |
| 1 1/4 | 1.38 | 2.03 | 3.94 | 3 | 12 | 9.06 |
| 1 3/8 | 1.5 | 2.25 | 4.38 | 3.31 | 13-1/2 | 11.63 |
| 1 1/2 | 1.62 | 2.38 | 4.81 | 3.63 | 17 | 15.95 |
| 1 3/4 | 2.12 | 2.88 | 5.75 | 4.19 | 25 | 26.75 |
| 2 | 2 | 3.25 | 6.75 | 4.81 | 35 | 42.31 |
| 2 1/2 | 2.62 | 4.13 | 8 | 5.69 | 55 | 71.75 |
