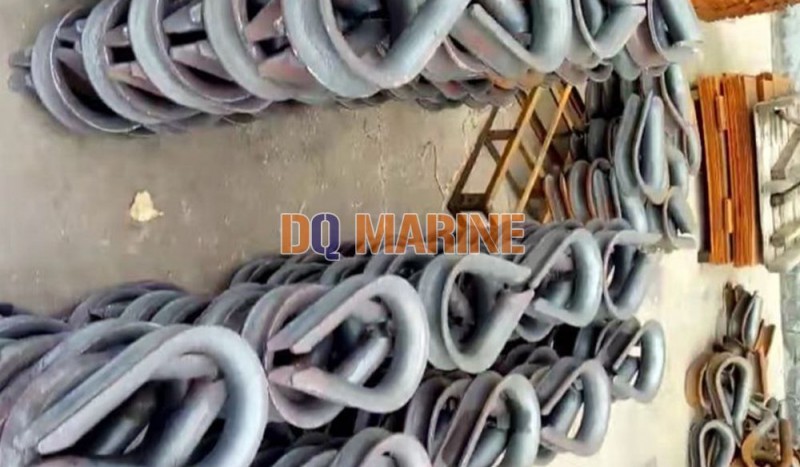

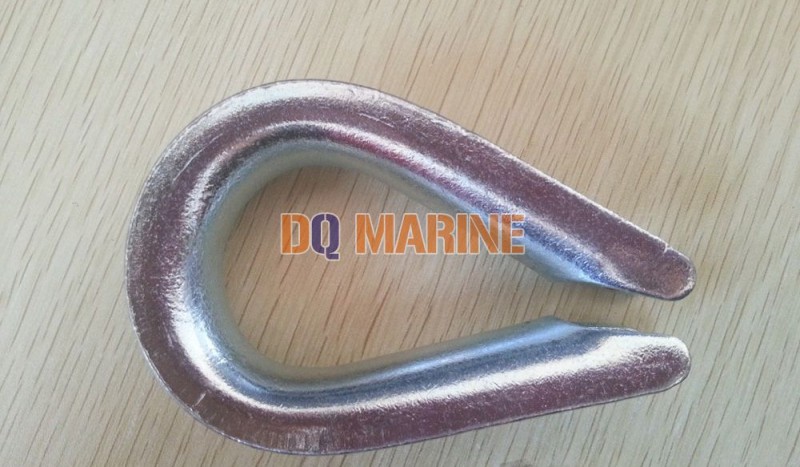

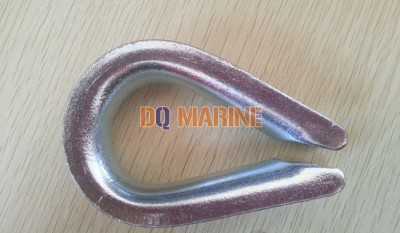

Standard Wire Rope Thimbles G411
Description
This product adopts American standard, it is constructed by sheet metal forming technology, and the material is Q235 steel, Surface can be electro galvanized or hot galvanized or sprayed plastics. The size is from 1/4in to 1-1/2in and the pull is from 0.5T to 20T. It is widely used to steel rope fittings.
Product Details
Standard Wire Rope Thimbles G411 sizes table
| Size | Dimensions(in) | Weight 100 pcs (Ibs) | ||||||||
| (in) | (mm) | A | B | C | D | E | F | G | H | |
| 1/8 | 3-4 | 1.94 | 1.31 | 1.06 | 0.69 | 0.25 | 0.16 | 0.05 | 0.13 | 3.5 |
| 3/16 | 5 | 1.94 | 1.31 | 1.06 | 0.69 | 0.31 | 0.22 | 0.05 | 0.13 | 3.5 |
| 1/4 | 6-7 | 1.94 | 1.31 | 1.06 | 0.69 | 0.38 | 0.28 | 0.05 | 0.13 | 3.5 |
| 5/16 | 8 | 2.13 | 1.5 | 1.25 | 0.81 | 0.44 | 0.34 | 0.05 | 0.13 | 4 |
| 3/8 | 9-10 | 2.38 | 1.63 | 1.47 | 0.94 | 0.53 | 0.41 | 0.06 | 0.16 | 6.7 |
| 1/2 | 11-13 | 2.75 | 1.88 | 1.75 | 1.13 | 0.69 | 0.53 | 0.08 | 0.19 | 12.5 |
| 5/8 | 16 | 3.5 | 2.25 | 2.38 | 1.38 | 0.91 | 0.66 | 0.13 | 0.34 | 34.5 |
| 3/4 | 18-20 | 3.75 | 2.5 | 2.69 | 1.63 | 1.08 | 0.78 | 0.14 | 0.34 | 47.1 |
| 7/8 | 22 | 5 | 3.5 | 3.19 | 1.88 | 1.27 | 0.94 | 0.16 | 0.44 | 84.6 |
| 1 | 24-26 | 5.69 | 4.25 | 3.75 | 2.5 | 1.39 | 1.06 | 0.16 | 0.41 | 97.5 |
| 1 1/8-1 1/4 | 28-32 | 6.25 | 4.5 | 4.31 | 2.75 | 1.75 | 1.31 | 0.22 | 0.5 | 175 |
