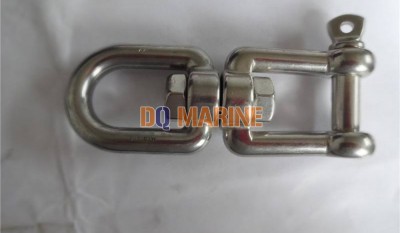

Stainless Steel Swivel Eye and Jaw
Stainless Steel Swivel Eye and Jaw Introduction
The material: AISI304/AISI316
It is used for connecting the chain and wire rope, can avoid the rope being tied.
The Product Detail
| Size(Ф) | B | C | D | E | L | BL | WT |
| mm | mm | mm | mm | mm | mm | KG | KG |
| 6 | 15 | 11 | 6 | 12 | 66 | 1200 | 0.06 |
| 8 | 21 | 16 | 8 | 16 | 94 | 1900 | 0.15 |
| 10 | 26 | 22 | 10 | 20 | 118 | 3500 | 0.29 |
| 13 | 33 | 28 | 13 | 26 | 152 | 5000 | 0.6 |
| 16 | 45 | 37 | 16 | 32 | 188 | 8500 | 1.06 |
| 19 | 50 | 45 | 19 | 38 | 229 | 10000 | 1.88 |
