CYZ Series marine horizontal self-priming oil pump
China CYZ Series marine horizontal self-priming oil pump:
CYZ Marine self-priming centrifugal pump, used to transport gasoline, diesel, kerosene, aviation coal and other petroleum products, is an excellent cargo pump, and is suitable for land oil depot, oil tanker oil transport, can also be used to transport sea water, fresh water and so on.Chemical liquid can be transported after corrosion resistant mechanical seal is changed.
When the pump group is used in oil tanker or chemical ship, the pump and motor can be separately installed in the pump tank and engine room through the compartment transmission device, which improves the reliability and safety of use.

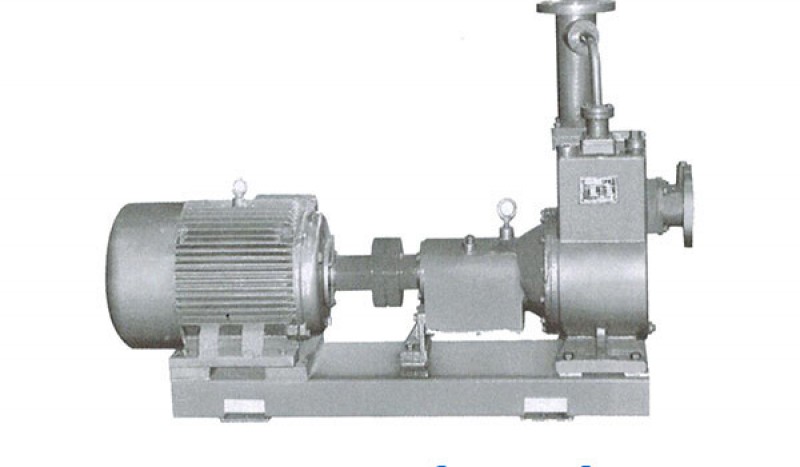

CYZ Series marine horizontal self-priming oil pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 40CYZ-20 | 6.3 | 20 | 2900 | 1.1 |
| 40CYZ-40 | 10 | 40 | 4 | |
| 50CYZ-40 | 10 | 40 | 4 | |
| 50CYZ-12 | 15 | 12 | 1.5 | |
| 50CYZ-20 | 18 | 20 | 2.2 | |
| 50CYZ-35 | 14 | 35 | 4 | |
| 50CYZ-50 | 12.5 | 50 | 55 | |
| 50CYZ-60 | 15 | 60 | 7.5 | |
| 50CYZ-75 | 20 | 75 | 11 | |
| 80CYZ-13 | 35 | 13 | 3 | |
| 80CYZ-17 | 43 | 17 | 4 | |
| 80CYZ-25 | 50 | 25 | 7.5 | |
| 80CYZ-32 | 60 | 32 | 7.5 | |
| 80CYZ-55 | 60 | 55 | 18.5 | |
| 80CYZ-70 | 80 | 70 | 22 | |
| 100CYZ-40 | 100 | 45 | 22 | |
| 100CYZ-40A | 100 | 40 | 22 | |
| 100CYZ-40B | 100 | 40 | 22 | |
| 100CYZ-65 | 70 | 65 | 30 | |
| 100CYZ-75 | 160 | 75 | 30 | |
| 100CYZ-55 | 170 | 55 | 45 | |
| Also have bigger pumps, pls contact us for more information. | ||||
