ISGB Series Easy-disassemble Vertical Pipeline Centrifugal Pump:
China ISGB Series Easy-disassemble Vertical Pipeline Centrifugal Pump:
ISGB portable vertical pipe centrifugal pump is a kind of new structure and advanced technology developed on the basis of ISG pump.
The vertical pump in particular on the overall structure of a bold breakthrough design.The use of independent bearing body, pump shaft support, to solve the original vertical pump motor bearing support deficiencies;The impeller with excellent hydraulic model is adopted to eliminate the deficiency of large axial force of the original vertical pump.The motor adopts Y series standard general motor to solve the problem that it is difficult to replace the lengthening shaft motor of the original vertical pump.At the same time, the 100% removable structure solves the problem of replacing bearing, mechanical seal, impeller and pump shaft of high-power water pump.

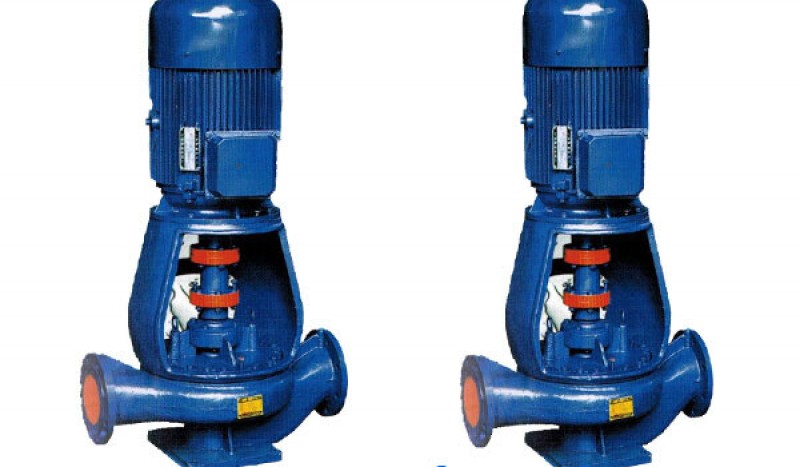

ISGB Series Easy-disassemble Vertical Pipeline Centrifugal Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 15-80 | 1.1 | 8.5 | 2800 | 0.18 |
| 20-110 | 1.8 | 16 | 2800 | 0.37 |
| 20-160 | 2.8 | 33 | 2900 | 0.75 |
| 25-110 | 2.8 | 20.6 | 2900 | 0.55 |
| 25-125 | 2.8 | 17 | 2900 | 0.75 |
| 25-125A | 2.6 | 33 | 2900 | 0.55 |
| 25-160 | 4.5 | 29 | 2900 | 1.5 |
| 25-160A | 4.4 | 12.5 | 2900 | 1.1 |
| 32-100(I) | 3.5 | 13.2 | 2900 | 0.55 |
| 32-125 | 3.1 | 22 | 2900 | 0.75 |
| 32-125A | 6.5 | 17.6 | 2900 | 0.75 |
| 32-160 | 4 | 32 | 2900 | 0.55 |
| 32-160A | 4.4 | 25 | 2900 | 1.5 |
| 32-200 | 4.5 | 33.2 | 2900 | 1.1 |
| 32-200(I) | 4.4 | 50 | 2900 | 2.2 |
| 32-200A | 2.8 | 50.5 | 2900 | 3 |
| 40-100 | 4.4 | 44.6 | 2900 | 4 |
| 40-100A | 3.9 | 132.2 | 2900 | 2.2 |
| 40-125 | 4.4 | 10.6 | 2900 | 3 |
| 40-125A | 3.9 | 21 | 2900 | 4 |
| 40-160 | 4.4 | 17.6 | 2900 | 2.2 |
| Also have bigger pumps, pls contact us for more information. | ||||
