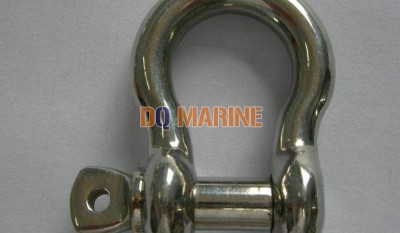

Stainless Steel JIS Type Bow Shackle:
Stainless Steel JIS Type Bow Shackle Introduction
The material: AISI304/AISI316
Adopt the forging process, with heavy load capacity.
The Product Detail
| Size (M) | C | H | W | F | D | BL | WT |
| mm | mm | mm | mm | mm | mm | KG | KG |
| M4 | 4 | 16 | 8 | 12 | 8 | 500 | 0.01 |
| M5 | 5 | 20 | 10 | 15 | 10 | 800 | 0.02 |
| M6 | 6 | 24 | 12 | 18 | 12 | 1100 | 0.03 |
| M8 | 8 | 32 | 16 | 24 | 16 | 2000 | 0.08 |
| M10 | 10 | 40 | 20 | 30 | 20 | 3200 | 0.13 |
| M12 | 12 | 48 | 24 | 36 | 24 | 4400 | 0.224 |
| M14 | 14 | 56 | 28 | 42 | 28 | 5600 | 0.346 |
| M16 | 16 | 64 | 32 | 48 | 32 | 8000 | 0.37 |
| M20 | 20 | 80 | 40 | 60 | 40 | 10000 | 0.98 |
| M22 | 22 | 88 | 44 | 66 | 44 | 15000 | 1.35 |
| M25 | 25 | 100 | 51 | 75 | 50 | 20000 | 2.2 |
