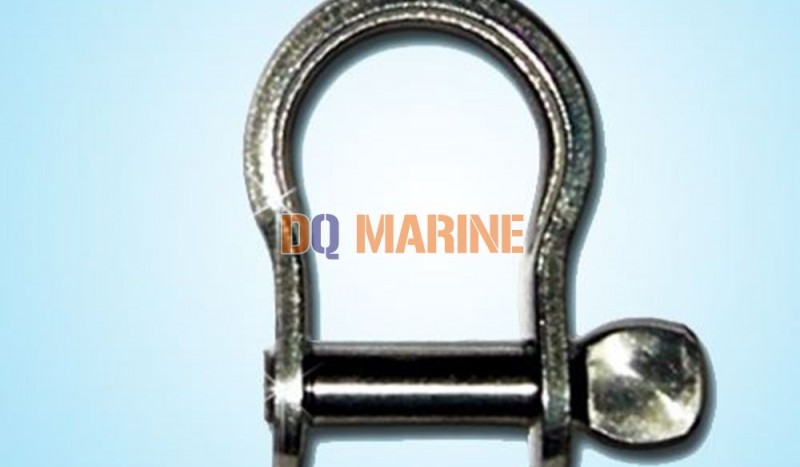

Stainless Steel Flat Bow Shackle
Stainless Steel Flat Bow Shackle Introduction
The material: AISI304/AISI316
The shackle body material is made by punching press.
With low producing cost and high efficiency.
The Product Detail
| Size (M) | S | H | E | F | D |
| mm | mm | mm | mm | mm | mm |
| M4 | 1.5 | 15 | 5 | 9 | 8 |
| M5 | 2 | 17 | 7 | 11 | 10 |
| M6 | 3 | 23 | 8 | 16 | 12 |
| M8 | 4 | 31 | 8 | 23 | 16 |
| M10 | 5 | 40 | 11 | 25 | 20 |
| M12 | 6 | 50 | 14 | 28 | 24 |
