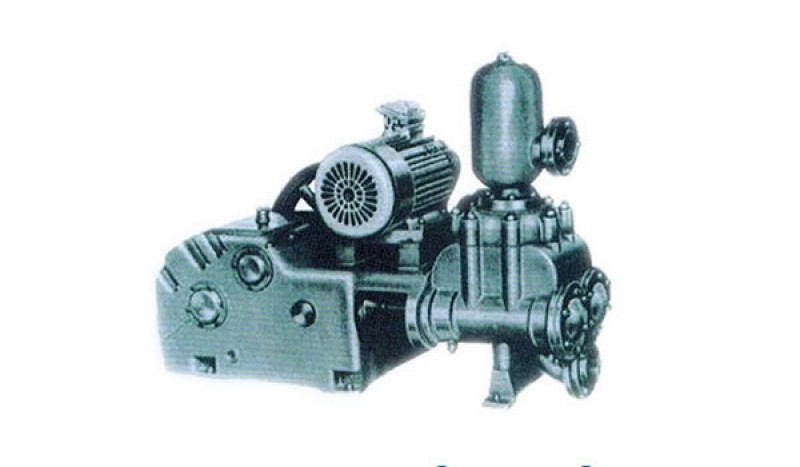

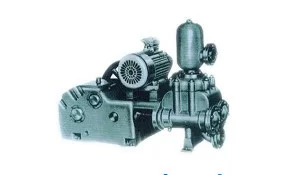

CDS Series Marine Electrical Reciprocating Pump
China CDS Series Marine Electrical Reciprocating Pump:
CDSL marine electrical vertical reciprocating pump,CDSW marine electrical horizontal reciprocating pump,it is suitable to transport the sea water,the fresh water,the petroleum and the petroleum product in the ships,or transports other liquids which its physics,the chemical property are similar.
Or the temperature of the transported medium to be divided into the three ranks of high,middle and low.
Construction of pump
Main Technical Data
| Model |
Flow rate Q （m³/h） |
Pressure (Mpa) |
Drameter of the outlet (mm) |
Motor power (KW) |
| 2CDS(Y)L-15/0.3 | 15 | 0.3 | 65 | 3 |
| 2CDS(Y)L-15/0.4 | 15 | 0.4 | 65 | 4 |
| 2CDS(Y)L-15/0.5 | 15 | 0.5 | 65 | 5.5 |
| 2CDS(Y)L-15/0.6 | 15 | 0.6 | 65 | 5.5 |
| 2CDS(Y)L-15/0.7 | 15 | 0.7 | 65 | 5.5 |
| 2CDS(Y)L-15/0.8 | 15 | 0.8 | 65 | 7.5 |
| 2CDS(Y)L-15/1.0 | 15 | 1 | 65 | 11 |
| 2CDS(Y)L-25/0.3 | 25 | 0.3 | 65 | 5.5 |
| 2CDS(Y)L-25/0.4 | 25 | 0.4 | 65 | 5.5 |
| 2CDS(Y)L-25/0.5 | 25 | 0.5 | 65 | 7.5 |
| 2CDS(Y)L-25/0.6 | 25 | 0.6 | 65 | 7.5 |
| 2CDS(Y)L-25/0.7 | 25 | 0.7 | 65 | 11 |
| 2CDS(Y)L-25/0.8 | 25 | 0.8 | 65 | 11 |
| 2CDS(Y)L-25/1.0 | 25 | 1 | 65 | 15 |
| 2CDS(Y)L-35/0.3 | 35 | 0.3 | 80 | 5.5 |
| 2CDS(Y)L-35/0.4 | 35 | 0.4-1.4 | 80 | 7.5 |
| 2CDS(Y)L-35/0.5 | 35 | 0.5 | 80 | 11 |
| 2CDS(Y)L-35/0.6 | 35 | 0.6 | 80 | 11 |
| Also have bigger pumps, pls contact us for more information. | ||||
Packing and Delivery：
1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.
How to Order?
1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
