NEK606 P19 or P19/P21 RFOU 12/20KV

Description

P19 or P19/P21 RFOU 12/20KV cables are flame retardant, low smoke, halogen free and mud resistant, used for fixed installation for medium voltage power.

Standards

IEC 60092-353

IEC 60092-351

IEC 60092-359

IEC 60332-1

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606:2004

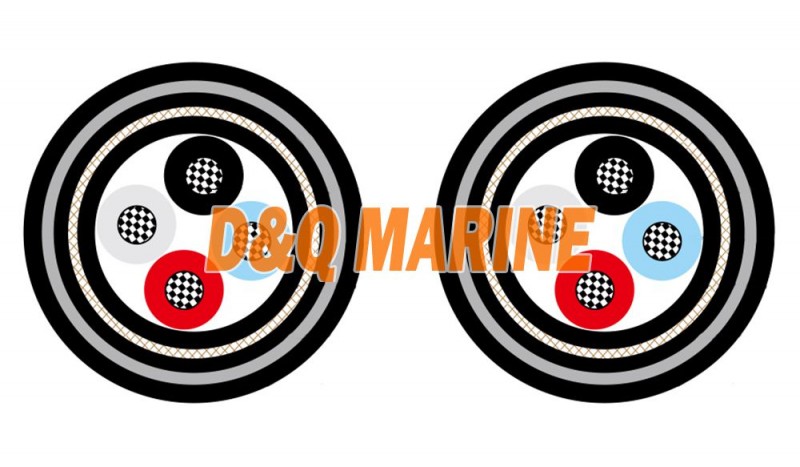

Construction
  • Conductors : Circular tinned annealed stranded copper to IEC 60228 class 2.
  • Conductor Screen : Semi conducting material.
  • Insulation : Halogen-free EPR. XLPE can be offered as an option (for TFOU cable).
  • Insulation Screen : Semi conducting material and tinned copper wire braid.
  • Bedding : Halogen free compound.
  • Armour : Tinned copper wire braid.
  • Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE P19), or halogen free mud resistant thermosetting compound, SHF MUD (for TYPE P19/P21),coloured red.
Technical Data
Nominal Cross Section Area mm² 16 25 35 50 70 95
Nominal Conductor Diameter mm 5.2 6.5 7.4 8.7 10.3 12.2
Maximum DC Resistant@20℃ Ω/km 1.16 0.734 0.529 0.391 0.27 0.195
Continuous Current Rating@45℃1 Core A 96 127 157 196 242 293
Continuous Current Rating@45℃3 Core A 67 89 110 137 169 205
Short Circuit Current 1s A 2290 3580 5010 7150 10020 13590
Operating Voltage KV 12/20 12/20 12/20 12/20 12/20 12/20
Nominal Cross Section Area mm² 120 150 185 240 300
Nominal Conductor Diameter mm 13.8 15.1 17 19.6 21.9
Maximum DC Resistant@20℃ Ω/km 0.154 0.126 0.1 0.0762 0.0607
Continuous Current Rating@45℃1 Core A 339 389 444 522 601
Continuous Current Rating@45℃3 Core A 237 272 311 365 421
Short Circuit Current 1s A 17170 21460 26470 34340 42930
Operating Voltage KV 12/20 12/20 12/20 12/20 12/20
Optional :
  • P20 or P20/P22 RFOU/TFOU 18/30(36) kV.

Mechanical and Thermal Properties

  • Bending Radius :15×OD (during installation); 9×OD (fixed installed).
  • Temperature Range : -20℃ ~ +90℃.
