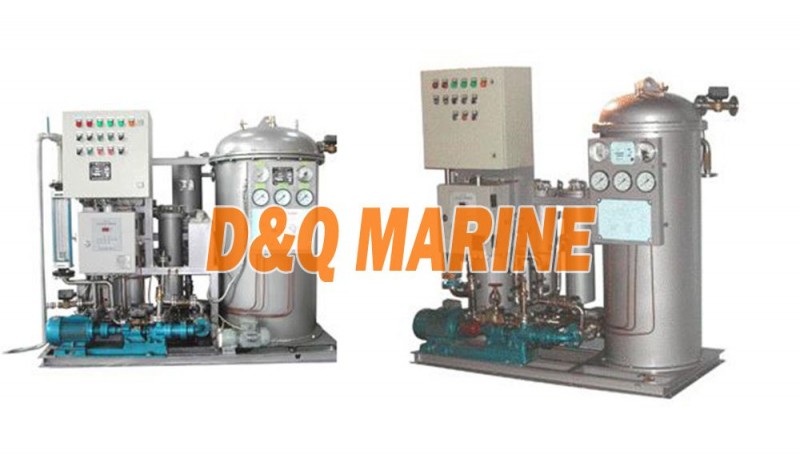

YWC-0.5m3 per hour 15ppm Bilge oily water separator
Category:
Oily Water Separator
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
YWC-0.5m3 per hour 15ppm Bilge oily water separator:
Description:

This device 15ppm Bilge Water Separator is a kind of environmental protection product designed based on International Marinetime Organization IMO MEPC.107(49) standard, the oil content in effluent water ≤15ppm. This separator is the high tech newest product which can effectively dispose all kinds of fluids in bilge water including fuel oil, high-density residual oil and emulsion mixture combine with black ferric oxide and surfactant.

This separator can also be used in industrial and petroleum, besides in ship vessels. The effluent oil content from the separator can meet any standards of Environment Bureau in China.

This separator has obtained two items of Authorized Patent and six items of practical new patent, meanwhile has been obtained the type approval of CCS and IMO circular in July 2007, and it in January 2009 by Germanischer Lloyed (GL) type approval certificate med made, while providing ABS, DNV, BV, RS AND other calssification societies certificate.

We had by GL-EC approval 15ppm bilge separator , the main parts adopt international famous brands, including electrical control box components provided by Schneider , 15ppm bilge alarm provide by German DECKMA Ha, screw pump provide by the Mono Pump.

Technical:

Type YWC-0.25 YWC-0.5 YWC-1.00 YWC-1.50 YWC-2.00
Rating Capacity
(m3/h)
0.25 0.5 1 1.5 2
Power of Pump
(kw)
0.37 0.55 0.75 1.1 1.1
Electric Heater
Power
(kw)
3 3 Option Option Option
15ppm Bilge Alarm Included Included Included Included Included
Steam Heater
(m2/kw)
Not Not 1/30 1/45 2/60
Base(Channel Steel)
(mm)
#5
1000X600
#6
1100X690
#6
1050X1080
#6
1100X1130
#8
1900X1120
Height
(mm)
1250 1460 1600 1650 1700
Dry/Wet Weight
(kg)
300/450 600/800 800/860 1060/1810 1260/2260
Optional Electric
System
AC 380V/50Hz/3 phase
AC 415V/50Hz/3 phase
AC 440V/60Hz/3 phase
AC 480V/60HZ/3 phase
Applicable ship
vessel
(KDWT)
1 1-5 5-10 10-30 30-50

Type YWC-2.50 YWC-3.00 YWC-4.00 YWC-5.00
Rating Capacity
(m3/h)
2.5 3 4 5
Power of Pump
(kw)
1.5 1.5 2.2 2.2
Electric Heater
Power
(kw)
Option Option Option Option
15ppm Bilge Alarm Included Included Included Included
Steam Heater
(m2/kw)
2/75 3/90 4/120 5/150
Base(Channel Steel)
(mm)
#8
1900X1120
#8
1700X1500
#8
2280X1700
#8
2590X2000
Height
(mm)
1900 1900 1900 1900
Dry/Wet Weight
(kg)
1500/2800 1800/3200 2100/3900 2500/4600
Optional Electric
System
AC 380V/50Hz/3 phase
AC 415V/50Hz/3 phase
AC 440V/60Hz/3 phase
AC 480V/60HZ/3 phase
Applicable ship
vessel
(KDWT)
50-100 100-200 100-300 300
Above
