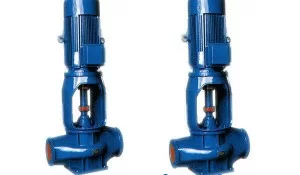

SLB Series Marine Vertical Single Stage Suction Centrifugal Pump
China SLB Series Marine Vertical Single Stage Suction Centrifugal Pump:
SLB series vertical single stage double suction centrifugal pump is the latest type of double suction pump produced by our company for urban water supply, heating, air conditioning refrigeration and other industries according to the market demand.This series of products are widely used in pump stations, power stations, air conditioning circulating water, fire protection systems, etc.Adopted the best hydraulic model at home and abroad, stable performance, high efficiency, compact product structure, small footprint, smooth operation, small vibration, easy installation and maintenance.

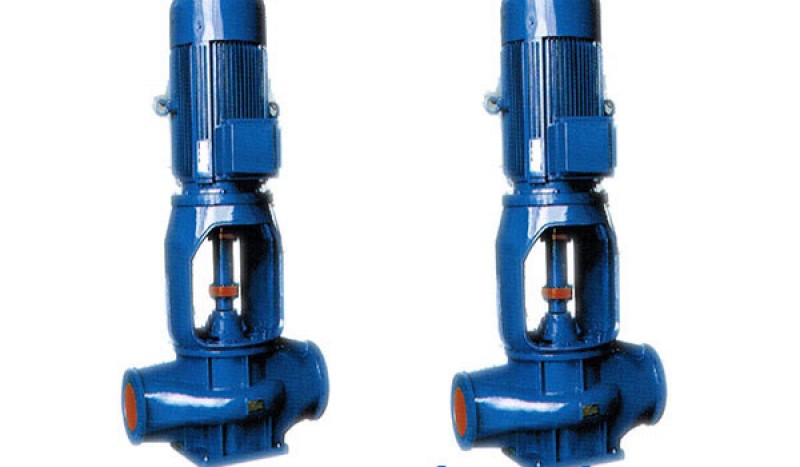

SLB Series Marine Vertical Single Stage Suction Centrifugal Pump
Main Technical Data
| Model |
Capacity m³/h |
Head m |
Rev speed r/min |
Motor power KW |
| 150-100-260（I） | 2.8 | 20.6 | 2900 | 1.1 |
| 150-100-260（I）A | 2.8 | 33 | 2900 | 1.5 |
| 150-100-260（I）B | 3.8 | 22 | 2900 | 2.2 |
| 150-100-260（I）C | 3.8 | 34.5 | 2900 | 3 |
| 150-100-260 | 3.8 | 52.5 | 2900 | 5.5 |
| 150-100-260A | 7.5 | 22 | 2900 | 4 |
| 150-100-260B | 12.5 | 34.5 | 2900 | 4 |
| 150-100-260C | 7.5 | 52.5 | 2900 | 7.5 |
| 150-100-260D(I) | 15 | 82 | 2900 | 15 |
| 150-100-260D(I)A | 15 | 22 | 2900 | 4 |
| 150-100-260D(I)B | 15 | 35 | 2900 | 7.5 |
| 150-100-260D(I)C | 15 | 53 | 2900 | 11 |
| 150-100-260D | 30 | 82 | 2900 | 22 |
| 150-100-260DA | 30 | 22.5 | 2900 | 7.5 |
| 150-100-260DB | 30 | 20 | 2900 | 11 |
| 150-100-260DC | 30 | 34 | 2900 | 18.5 |
| 150-100-320(I) | 60 | 53 | 2900 | 37 |
| 150-100-320(I)A | 60 | 84 | 2900 | 15 |
| 150-100-320(I)B | 60 | 23 | 2900 | 22 |
| 150-100-320(I)C | 60 | 84 | 2900 | 15 |
| 150-100-320 | 60 | 23 | 2900 | 22 |
| Also have bigger pumps, pls contact us for more information. | ||||
