NEK606 Instrumentation Cables S12 RU(c) 250V Marine Cable
Category:
NEK 606 Offshore & Marine Cables
Certificate:
ABS,LR,BV,DNVGL,NK,KR,IRS,RMRS,CCS
FOB Price:
Get Latest Price Now
Warranty:
12 Months unless specified otherwise
Place of Origin:
China
Request a Quote Print this page
We can supply according to your requirement.
NEK606 Instrumentation Cables S12 RU(c) 250V Marine Cable:
Applications

These unarmoured cables are flame retardant, low smoke and halogen free, used for instrumentation, communication, control and alarm systems.

Standards

IEC 60092-376

IEC 60092-351

IEC 60092-359

IEC 60332-1

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606:2004

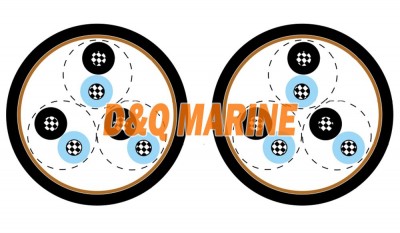

Construction
  • Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2.
  • Insulation : Halogen free EPR compound.
  • Twinning : Colour coded cores twisted together.
  • Collective Shielding : Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
  • Outer Sheath : Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).
Technical Data
Nominal Cross Section Area mm² 0.75 1 1.5
Nominal Conductor Diameter mm 1.1 1.3 1.6
Maximum Resistant@20℃ Ω/km 26.3 19.3 12.9
Mutual Capacitance nF/km 80 90 100
Nominal Inductance@1KHz MH/km 0.682 0.645 0.632
Maximum L/R@1KHz μH/Ω 20 25 35
Operating Voltage V 250 250 250

Mechanical and Thermal Properties
  • Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
  • Temperature Range : -20℃ ~ +90℃.
